Rear seat control module, location/task/design/function - GF91.29-P-2108S

MODEL 220 with CODE (223b) Electrically adjustable rear bench seat

MODEL 220 with CODE (224c) Electrically adjustable rear single seats, with seat ventilation, seat heater and memory package

MODEL 220 with CODE (402a) Seat ventilation of rear seats

MODEL 220 with CODE (872) Electrically heated left and right rear seats

Illustration shows:

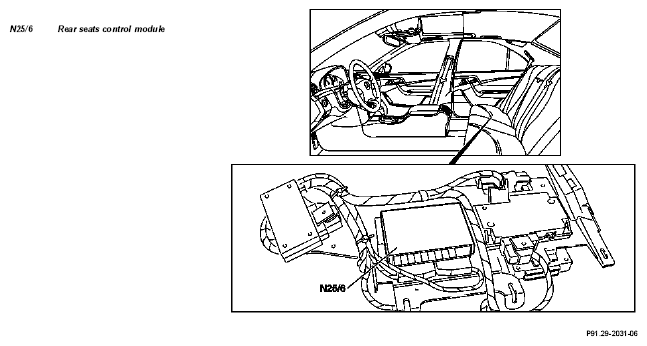

Fig 1: Identifying Rear Seat Control Module Location

Rear seat control module, location	The rear seats control module (N25/6) is located under the right half of the rear bench seat/under the right rear seat.
Rear seat control module, task	Control of heated rear seats (special equipment) Control of rear seat ventilation (special equipment) Reading in and actuation of components of these systems Communication with the multicontour backrest control module (special equipment)
Rear seat control module, design	The control module is accommodated in the stable plastic housing. Power semiconductors which actuate the consumers directly are located in the control module. The electrical connection is via eight connectors.
Electric seat adjustment (ESA) function		GF91.29-P-0004S
Seat ventilation function		GF91.30-P-0002S
Heated seats (HS) function		GF91.30-P-0003S
