Rear head restraint adjustment switch, location/purpose/design/function - GF91.16-P-4102A
MODEL 215

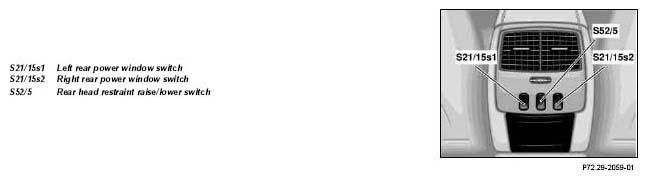

The rear head restraint raise/lower switch (S52/5) is located between the left rear power window switch (S21/15s1) and the right rear power window switch (S21/15s2) in the rear center console.
| Rear head restraint adjustment switch, purpose | Lifting and lowering the left and right rear head restraint. | ||
| Rear head restraint adjustment switch, design | The rear head restraint raise/lower switch (S52/5) is a rocker switch with non-actuated state. Two resistors are integrated in the switch for voltage coding. | ||
| Rear head restraint adjustment switch, function | The switch state is read in by the rear control module (N22/6) and stored as a message on the CAN bus. |
