Rear compartment control module, location/task/design - GF91.29-P-2111A: Notes

MODEL 215

Illustration shows:

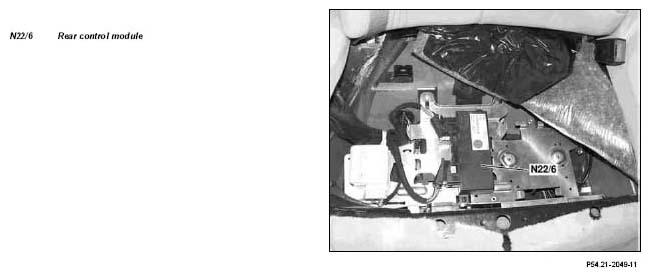

Fig 1: Identifying Rear Compartment Control Module Location

	Rear control module location	The rear control module (N22/6) is located under the right half of the rear bench seat.
	Rear seat control module, task		GF91.29-P-2111-01A
	Rear seat control module, design	For the electrical connection the CAN-capable control module has two multipin plug sockets.
	Rear seat control module, function	The control module has an undervoltage and overvoltage cut-out. The power outputs are resistant to short-circuits.
