Front seat adjustment switch train, location/task/function - GF91.29-P-2100S: Notes
Models 215, 220
Location of front seat adjustment switch group as of 1.9.02

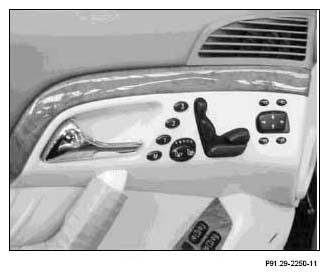

| Front seat adjustment switch group, location | The left/right front seat adjustment switches are integrated into the left front door control module (N69/1)/and right front door control module (N69/2) The door control modules are located behind the front door panelings. | ||
| Front seat adjustment switch group, location | GF91.29-P-2100-01S | ||
| Switch group, front seat adjustment, layout | Four inputs to the left front door control module (N69/1)/right front door control module (N69/2) are connected to the switches for seat adjustment each via one group of graded resistors. | ||
| Front seat adjustment switch train, function | The switches for seat adjustment switch the connected resistors to ground. The voltage-coded signal thus produced is read in by the respective door control module, conditioned and placed as a message on the CAN. |
