Easy entry feature, function - GF91.29-P-0005C

MODEL 215

Left and right front seats

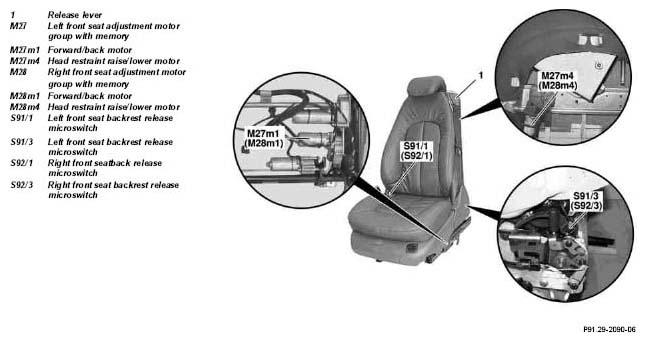

Fig 1: Identifying Release Lever, Left Front Seat Adjustment Motor Group With Memory And Forward/Back Motor

Function prerequisites

Circuit 15R OFF and associated vehicle door open or
circuit 15R ON or
circuit 15 ON and vehicle speed v ≤ 5 km/h

and

voltage not too low or too high
Fore/aft drive, backrest inclination and head restraint adjustment synchronized

Conditions for abnormal termination

Seat adjustment switch actuated or
voltage too low or too high recognized or
fore/aft adjustment hall sensor recognized as defective or
pinch protection recognized as defective when moving seat back.

Easy entry feature, function

(described on front left seat)

Moving seat forward

When the backrest release handle is pulled, the backrest is released mechanically and can be folded forward. When it is released the left front seat backrest release microswitch (S91/3) is actuated and the change in its switch position is read in by the left front seat adjustment control module with memory (N32/1) . Then the head restraint raise/lower motor (M27m4) is actuated and the front left head restraint moves toward the bottom stop to prevent a collision with the headliner when the backrest is folded forward. When the backrest is folded forward the left front seatback microswitch (S91/1) is actuated and read in by the control module. The seat starts moving forward (forward/back motor (M27m1) actuated). If the backrest is returned to the upright position while the seat is moving forward the seat moves back again. After reaching the front end position the seat stops moving forward. The front end position is approx. 60 mm in front of the front mechanical stop. When folded forward the backrest does not lock.

Moving front seat back

If, after being folded forward, the backrest is moved back to its initial position the left front seat backrest release microswitch (S91/3) locks. Then the seats starts moving back (forward/back motor (M27m1) actuated). When folded back to the end position the backrest locks mechanically. While the seat is moving back the pinch protection (excessive force limitation) is active. If pinching is recognized the seat moves approx. 30 mm forward, however, not further than the front end position for easy entry. After reaching the rear initial position the seat stops moving back. If the initial position is more than approx. 260 mm behind the front mechanical stop this position is actuated. After locking the backrest and reaching the initial position of the fore/aft adjustment the head restraint moves to its initial position as well.

	Seat adjustment collision prevention, function		GF91.29-P-2010A
	Seat synchronization, function		GF91.29-P-3005S
	Overload protection, function		GF91.29-P-3006S
	Front seat adjustment motor group, location/ function		GF91.29-P-2103S
	Left front seat adjustment control module with memory, location/purpose		GF91.29-P-2106S
	Right front seat adjustment control module with memory, location/purpose		GF91.29-P-2107S
