Adjusting rear seats, function - GF91.29-P-2009S
MODEL 220 with CODE (223b) Electrically adjustable rear bench seat
MODEL 220 with CODE (224c) Electrically adjustable rear single seats, with seat ventilation, seat heater and memory package

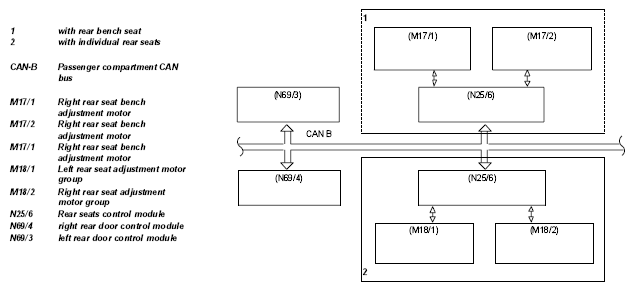

Block diagram
Seat adjustment of rear bench seat/ individual rear seats
Function requirements:
- No overvoltage or undervoltage
- Term.15R or 15 ON
- Respective vehicle door open
- Position measurement works faultlessly (on account of locking recognition)
Rear bench seat adjustment without memory
With the electrically adjustable rear bench seat without memory a manual longitudinal adjustment can be performed using one motor each on the left and right half of the rear bench seat. The adjustments are made via the adjustment switches in the left rear door control module (N69/3)/right rear door control module (N69/4).
Individual rear seats seat adjustment with memory
The following can be adjusted separately in each case with the electrically adjustable individual rear seats with memory
- The angle of the seat cushion
- The fore/aft position of the seat cushion
The adjustments are performed manually using the adjustment switches in the left rear door control module (N69/3)/right rear door control module (N69/4) or automatically using the memory feature. In this connection three complete seat adjustments can be stored and called up again for each rear seat (left and right).
| Front seat adjustment switch group, location/ task/function | GF91.29-P-2100S | ||
| Front seat adjustment motor group, location/ function | GF91.29-P-2103S | ||
| Left front seat adjustment control module with memory, location/task | GF91.29-P-2106S | ||
| Right front seat adjustment control module with memory location/task | GF91.29-P-2107S | ||
| Rear compartment control module, location/ task/design | Model 215 | GF91.29-P-2111A | |
| Rear seat control module, location/task/ design/function | Model 220 | GF91.29-P-2108S | |
| Front driver door control module position / task / design / function | GF72.29-P-4105S | ||
| Front passenger side door control module, location/task/design/function | GF72.29-P-4106S | ||
| Rear door control module, location/task/ design/function | Model 220 | GF72.29-P-4102S |
