Remove/install pushbutton control module - AR83.40-P-6350M

MODEL 215, 220 up to 31.8.02

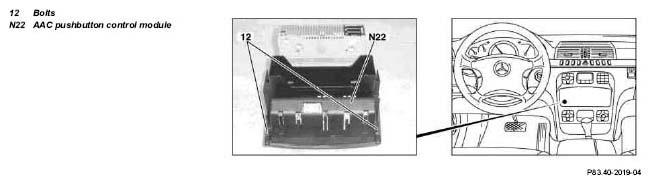

Fig 1: Identifying Pushbutton Control Module Remove/Install Components - Up To 31.8.02

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Remove cover on center console	Model 215.	AR68.20-P-2350N
		Model 220.	AR68.20-P-2350M
2	Unscrew bolts (12).
3	Remove AC pushbutton control module (N22)
4	Install in the reverse order
