Outside temperature sensor, location/task/design/function - GF83.57-P-2103S: Notes
MODELS 215, 220
Shown on MODEL 220

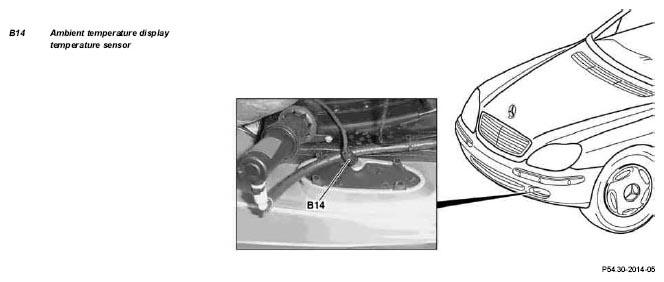

| Outside air temperature sensor position | The ambient temperature display temperature sensor (B14) is located at the left side of the front bumper | ||
| Outside air temperature sensor task | The ambient temperature display temperature sensor (B14) records the ambient temperature. | ||
| Outside air temperature sensor design | The outside temperature display temperature sensor (B14) is a temperature-dependent resistance with negative temperature coefficient (NTC). | ||
| Outside air temperature sensor function | The outside temperature display temperature sensor (B14) records the outside air temperature, converts it into an electrical signal and transmits it to the left front SAM control unit. |
