Fuel Injection System Test (Steps 13.0 & 14.0)

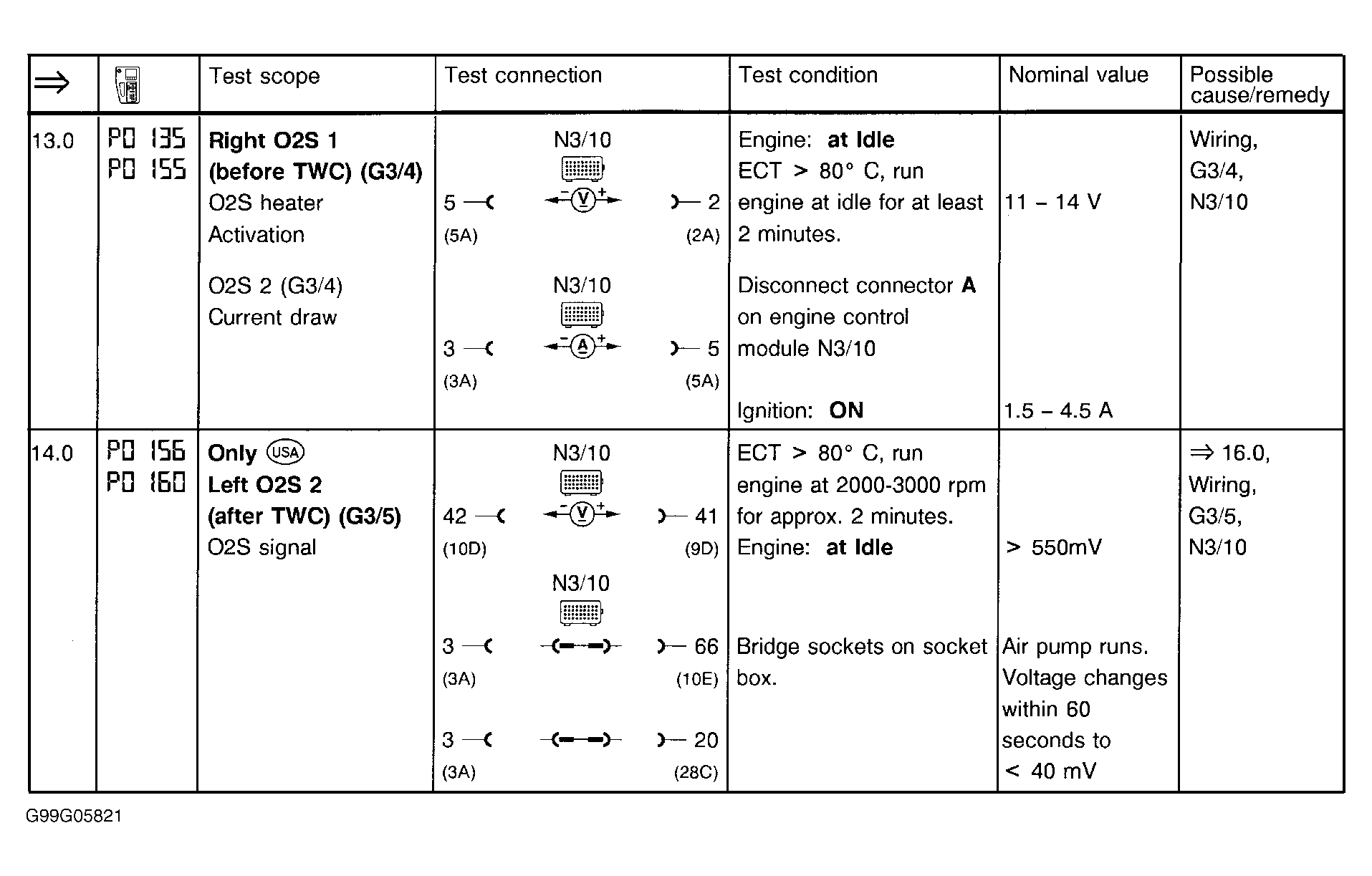

Fig 1: Fuel Injection System Test (Steps 13.0 & 14.0)

G99G05821

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
