Electronic Accelerator Test (Steps 1.0-2.0)

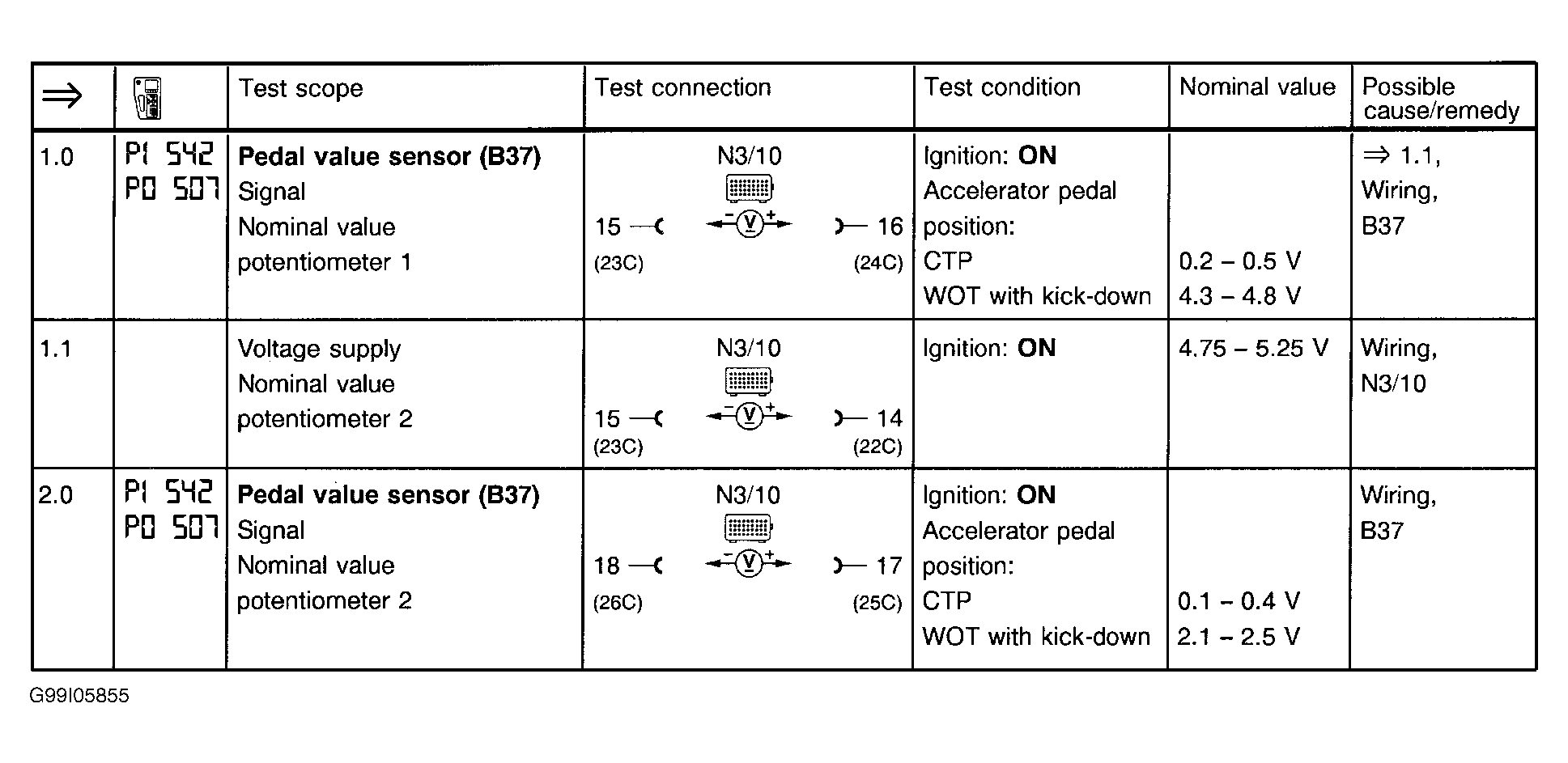

Fig 1: Electronic Accelerator Test (Steps 1.0-2.0)

G99I05855

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
