Front axle gear, location/task/design/function - GF33.30-P-0002P: Notes
MODEL 203.081 /281, 211.080 /280 with TRANSMISSION 722.667
MODEL 203.084 /284, 211.082 /282 with TRANSMISSION 722.668
MODEL 211.083 /283, 220.084 /184 with TRANSMISSION 722.672
MODEL 220.083 /183 with TRANSMISSION 722.671
MODEL 220.087 /187 with TRANSMISSION 722.675
MODEL 211.087 with TRANSMISSION 722.676

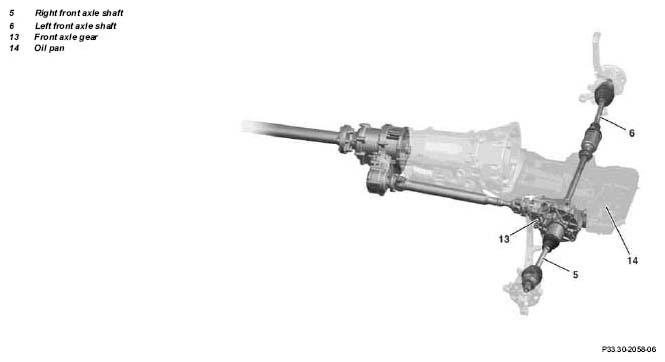

| Front axle gear, location | The front axle gear (13) is flange-mounted on the right next to the oil pan (14). | ||
| Front axle gear, task | To transfer the drive torque of the transfer case and pass it on to the front wheels via the right and left front axle shafts (5, 6). | ||
| Front axle gear, design | GF33.30-P-0002-01P | ||
| Front axle gear, function | GF33.30-P-0002-02P |
