Voice control system switch, location/task - GF82.70-P-4100B: Notes
MODELS 140, 202, 203 up to 23.4.04, 208.3, 210, 215, 220 up to 31.8.03 with CODE (813) Voice control system (VCS)
Shown on model 202, 203, 208.3, 210, 215, 220 as of 6/1/00

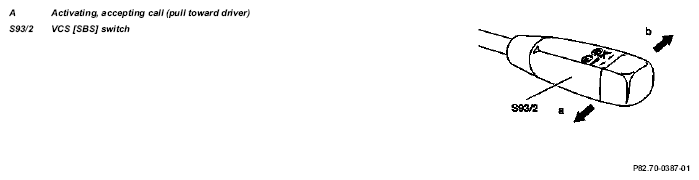

Fig 1: Identifying Activating/Accepting Call And VCS (SBS) Switch - Shown On Model 202, 203, 208.3, 210, 215, 220 As Of 6/1/00

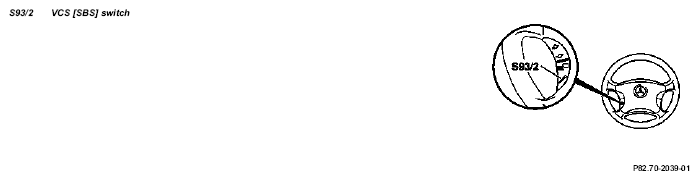

Illustrated on model 220 up to 31.5.00
| Voice control system (VCS), arrangement of components | Model 140 Model 210 up to 31.5.98 |
GF82.70-P-0002-01B | |
| Model 203 | GF82.70-P-0002-01P | ||
| Models 202, 208.3, 215, 220 up to 31.5.00 Model 210 as of 1.6.98 up to 31.5.00 |
GF82.70-P-0002-01E | ||
| Model 202.08/09/18, 208.3 from 1.6.00 | GF82.70-P-0002-01EA | ||
| Model 210 as of 1.6.00 | GF82.70-P-0002-01EB | ||
| Models 215, 220 as of 1.6.00 up to 31.8.03 | GF82.70-P-0002-01EC | ||
| Voice control system switch, purpose | GF82.70-P-4100-02B |
