Transmitter/receiver unit, location/task/design/function - GF82.95-P-4300A: Notes

MODEL 203.0 /2, 210, 220 up to 31.8.03 with CODE (853) MB standard cellular telephone with CODE (855) TELE AID with CODE (930) Taxi emergency call

MODEL 203.7, 208.3, 215 up to 31.8.03, 209.3 /4 with CODE (853) MB standard cellular telephone with CODE (855) TELE AID

Shown on model 203

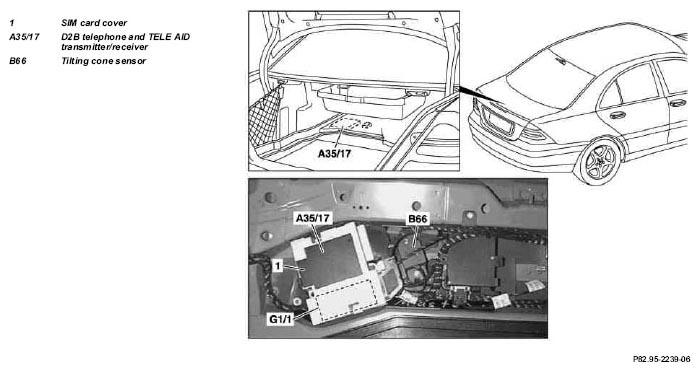

Fig 1: Identifying D2B Telephone And TELE AID Transmitter/Receiver - Shown On Model 203

Transmitter/receiver, location	Model 203 The telephone transmitter/receiver and TELE AID, D2B (A35/17) is located under a cover on the luggage compartment floor.
	Models 208.3, 209.3/4 with code 853, 855	GF82.95-P-4300-01A
	Model 210 with codes 855, 930	GF82.95-P-4300-01B
	Models 215, 220	GF82.95-P-4300-01C
Transmitter/receiver unit, purpose	Control unit of fixed installation telephone Central control of TELE AID emergency call and taxi call for help (with code 930 only) Control of TELE AID telediagnosis and an information call Acceptance of SIM card
Transmitter/receiver, design	Integral telephone transmitter/receiver unit Integrated GPS components Integrated additional battery Integrated interface (D2B bus)
Transmitter/receiver, function	Central processing of all the data required for a TELE AID emergency call (with code 930 in addition the data of a taxi call for help). Preparation of data required to calculate the vehicle position and to generate an emergency call telegram.
