Telephone interface, location/task/design/function - GF82.70-P-3107CA: Notes

MODEL 215, 220 as of 1.9.03 with CODE (854) MB portable cellular telephone

Location illustrated on model 220

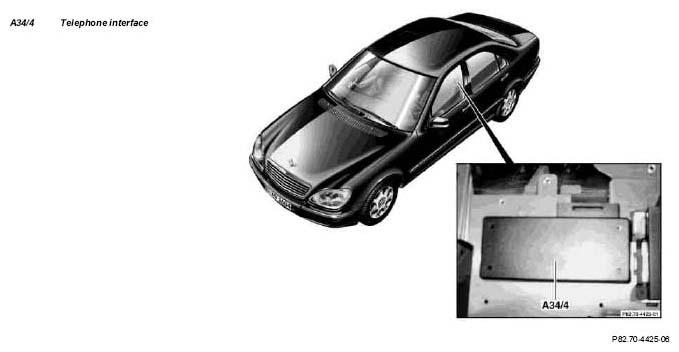

Fig 1: Identifying Telephone Interface Location
G04841058
  Telephone interface, location The telephone interface (A34/4) is located on the luggage compartment floor behind the rear bench seat.
  Telephone interface, task
  • Connecting the portable telephone (A34/6) to the Media Oriented System Transport (MOST) as a ring participant
  • Charging the portable telephone (A34/6) via the telephone interface (A34/4)
  • Antenna connection to the vehicle

  Telephone interface, design
  • MOST interface
  • Signal processing and conversion
  • Input for the MOST wake-up signal

  Telephone interface, function   GF82.70-P-3107-02QA
