CTEL interface, location/task/design/function - GF82.70-P-3107F: Notes

MODELS 129, 170, 202, 208, 210, 215, 220 with CODE (316) MB GSM cellular telephone (D2B)

Models 215, 220 (illustration shows model 220)

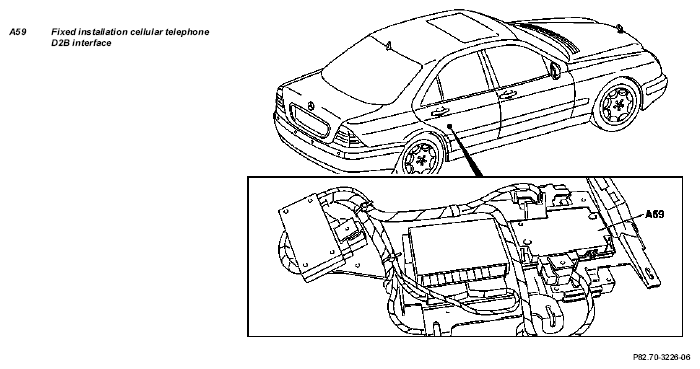

Fig 1: Identifying CTEL Interface And E-network Compensator

	Telephone interface, location	D2B interface and telephone interface are identical components
		Model 129	GF82.70-P-3107-01F
		Model 170	GF82.70-P-3107-01I
		Model 202	GF82.70-P-3107-01G
		Model 208	GF82.70-P-3107-01K
		Model 210	GF82.70-P-3107-01H
	Telephone interface, task	The fixed installation CTEL D2B interface (A59)  is required to connect the CTEL transmitter/receiver (A35)  to the digital data bus (D2B). With dynamic route guidance (code 815) additional task: Relay of T  raffic-M  essage C  hannel (TMC) traffic data to traffic data memory (A2/43) received via telephone
	Telephone interface, design	D2B interface Interface to CAN (telephone) Input for D2B Wake-Up signal
	Telephone interface, function		GF82.70-P-3107-02D
