CTEL interface, location/task/design/function - GF82.70-P-3107E: Notes

MODELS 129, 168, 170, 202, 208, 210, 215, 220 with CODE (317) GSM portable cellular telephone (D2B)

Models 215, 220, (illustration shows model 220)

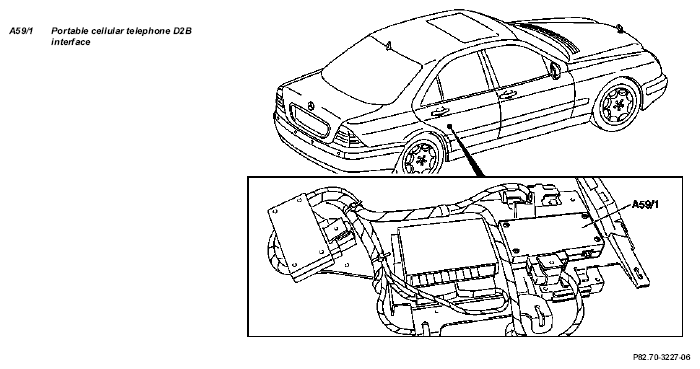

Fig 1: Identifying Portable Cellular Telephone D2B Interface

	Telephone interface, location	D2B interface and telephone interface are identical components
		Model 129	GF82.70-P-3107-01F
		Model 168	GF82.70-P-3107-01J
		Model 170	GF82.70-P-3107-01I
		Model 202	GF82.70-P-3107-01G
		Model 208	GF82.70-P-3107-01K
		Model 210	GF82.70-P-3107-01H
	Telephone interface, task	The portable CTEL D2B interface (A59/1)  is required to connect the mobile phone to the digital data bus (D2B).
	Telephone interface, design	D2B interface Input for D2B Wake-Up signal Integrated charging unit for mobile phone rechargeable battery
	Telephone interface, function		GF82.70-P-3107-02C
