TELE AID control unit/task/design/function - GF82.95-P-4100SX: Notes

MODEL 215.3, 220.0 /1 with CODE (359) TELE AID emergency call system

Shown on model 215

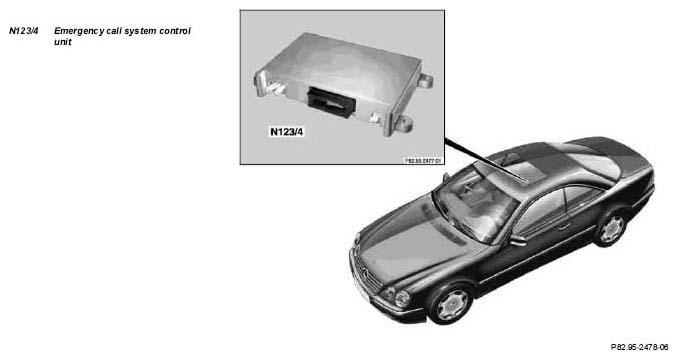

Fig 1: Identifying Emergency Call System Control Unit
G04852248
  TELE AID control unit, location The emergency call system control unit (N123/4) is installed on the right under the rear bench seat.
  TELE AID control unit, task   GF82.95-P-4100-02SX
  TELE AID control unit, design
  • Integrated telephone module
  • Integrated navigation module
  • Integrated additional battery
  • Memory for vehicle-specific data
  • Screened metal housing

  TELE AID control unit, function   GF82.95-P-4100-04SX
