Light wave conductor interface, location - GF82.70-P-3106-01C

Model 129

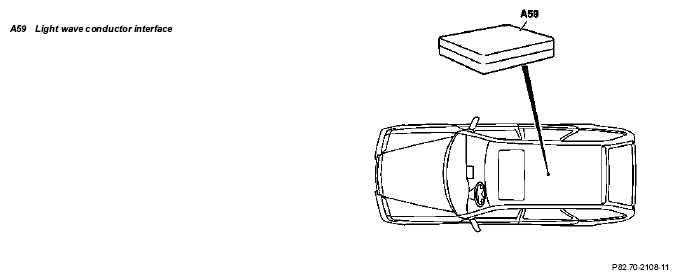

Fig 1: Identifying Light Wave Conductor Interface Location - Model 129

Model 170

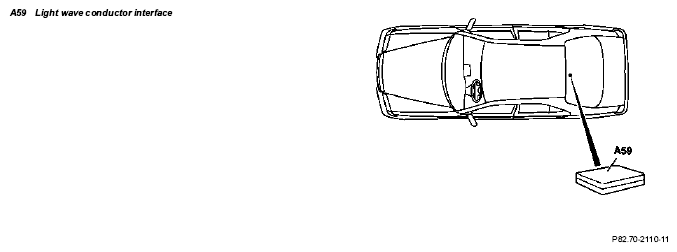

Fig 2: Identifying Light Wave Conductor Interface Location - Model 170

Model 202 sedan, 208.3

Illustrated on model 202

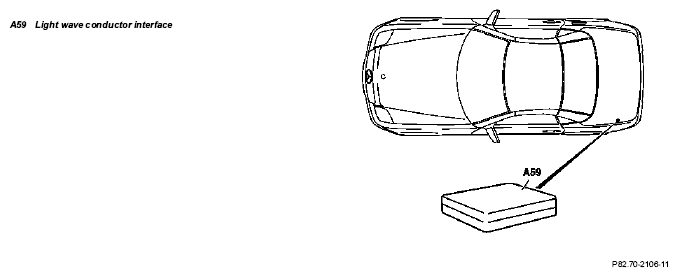

Fig 3: Identifying Light Wave Conductor Interface Location - Illustrated On Model 202

Model 202 T-model

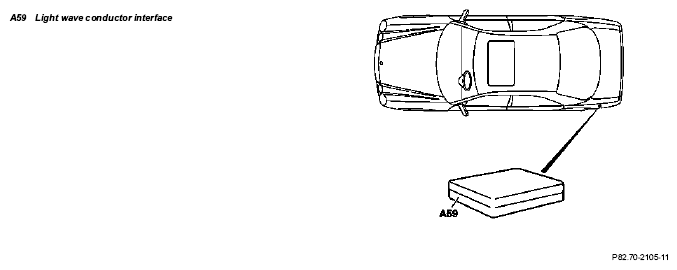

Fig 4: Identifying Light Wave Conductor Interface Location - Illustrated On Model 202 T-model

Model 210 sedan

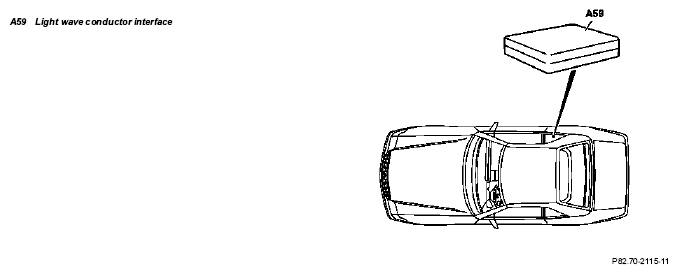

Fig 5: Identifying Light Wave Conductor Interface Location - Illustrated On Model 210 Sedan

Model 210 T-model

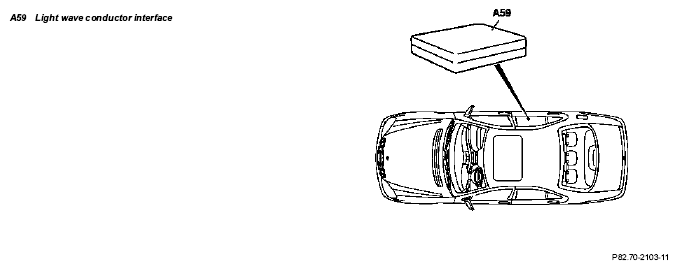

Fig 6: Identifying Light Wave Conductor Interface Location - Illustrated On Model 210 T-model

Model 220

Fig 7: Identifying Light Wave Conductor Interface Location - Illustrated On Model 220
