CD player with changer, location/task/design/function - GF82.64-P-3113B: Notes

MODELS 163, 208, 210, 215, 220 with CODE (819) 6-disc CD changer

MODELS 208, 210, 215, 220 with CODE (819a) CD changer with CODE (498) Japanese version

Shown on model 220 (as of 1.9.02)

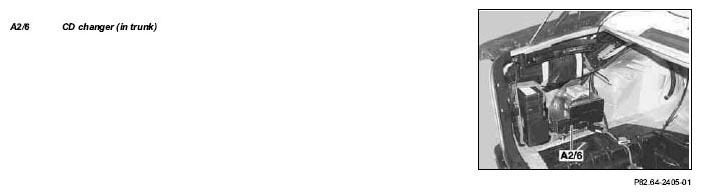

Fig 1: Identifying CD Changer (In Trunk) Location
G04608531JAPAN ONLY
  CD player with changer, location The CD player with changer (in the trunk) (A2/6) is located in the trunk near the left side wall.
    Model 163 GF82.64-P-3113-01GI
    Models 208, 210 GF82.64-P-3113-01D
    Models 215, 220 with code 498 GF82.64-P-3113-01F
    Models 215, 220 without code 498 GF82.64-P-3113-01E
  CD player with changer, purpose
  • Playing audio compact discs (CD)
  • Changing CDs contained in the magazine

  CD player with changer, design
  • 6-slot CD changer magazine

    JAPAN ONLY only: 12-slot CD changer magazine

  • Digital Data Bus (D2B) interface

The factory planned installation position for the CD changer is vertical, whereby other installation positions are possible by adaptation of the spring locations.
  CD player with changer, function Models 208, 210 GF82.64-P-3113-02C
    Model 215, 220 GF82.64-P-3113-02B
