Rain sensor, location/task/design/function - GF82.30-P-4103S: Notes
MODELS 203.0 /2 /7 up to 31.5.03, 215, 220 up to 31.8.02 with CODE (345a) Rain sensor

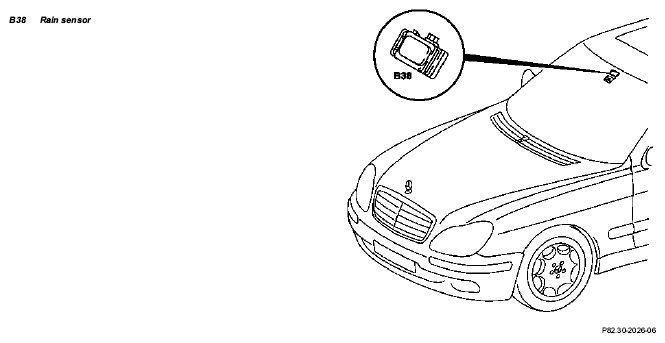

Shown on MODEL 220
| Rain sensor, location | The rain sensor (B38) is glued to the inside of the windshield. | ||
| Rain sensor, purpose | The rain sensor (B38) measures the quantity of moisture on the windshield and controls the intermittent time of the wiper system. | ||
| Rain sensor, design | The rain sensor (B38) consists of an IR transmitter unit and receiver as well as an electronic switch which serves for evaluation and as interface. | ||
| Function of rain sensor | Type 203.0/2/7 | GF82.30-P-4103-02PP | |
| Model 215, 220 | GF82.30-P-4103-02S |
