Electrical System -- Basic Knowledge -- 215 & 220 Chassis - 1 Of 2
>>
Basic Knowledge
>>
Overhead control panel control unit, location/task/design/function - GF82.20-P-4101S
>>
Design of overhead control panel control unit - GF82.20-P-4101-03S
Design of overhead control panel control unit - GF82.20-P-4101-03S
Models 215.3, 220.0/1
Shown on Model 220

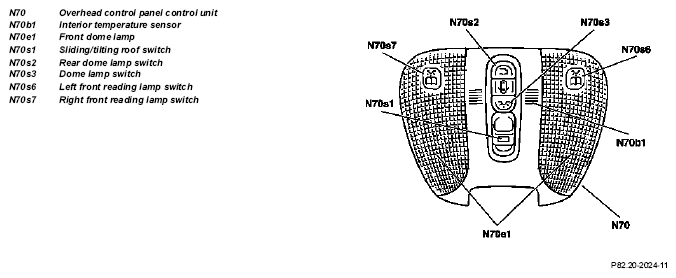

Fig 1: Overhead Control Panel Control Unit Design - Shown On Model 220
