Combination switch, location / task / design / function - GF82.30-P-2100S: Notes

Models 215, 220

Location of the component shown on MODEL 220

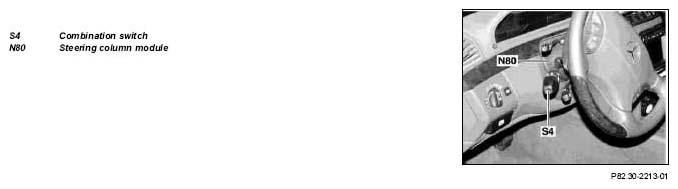

Fig 1: Identifying Combination Switch Location

	Combination switch, location	The combination switch (S4) is fitted to the steering column underneath the steering wheel. It is attached directly onto the steering column module (N80) and it is contacted by means of an integral connector; in other words, no wires are necessary.
	Combination switch, purpose	Control of the following systems: Turn signals, high and low beam headlamps, headlamp flasher, windshield wiper and windshield washer.
	Combination switch, design	Left and right turn signal indicator Switching on headlamp flasher and high beam Low beam switch Windshield washer system switch Horn contact Wiper switch (intermittent, slow/fast
	Combination switch, function		GF82.30-P-2100-04S
