Throttle valve actuator - location/task/design/function - GF30.22-P-4101AM: Notes

ENGINE 113.990 /991 /992 /993 /995

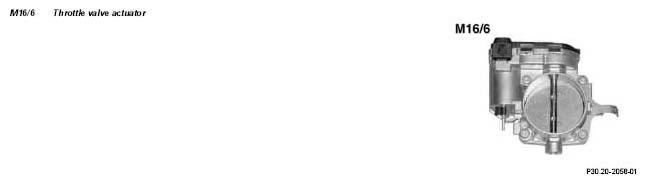

Fig 1: Identifying Throttle Valve Actuator

	Throttle valve actuator - position		GF30.22-P-4101-01AM
	Throttle valve actuator - task	The following functions are regulated by the throttle valve actuator: Idling speed regulation Driving mode, corresponding with the accelerator pedal position and load Cruise control mode Emergency electronic accelerator pedal
	Throttle valve actuator - design		GF30.22-P-4101-03HA
	Throttle valve actuator - function		GF30.22-P-4101-02HA
