Distronic switch block - location/task/design/function - GF30.30-P-3105K: Notes
ENGINE 112, 113, 137, 275, 613, 628 in MODEL 220 with CODE (219) Distronic (DTR)
ENGINE 113, 137, 275 in MODEL 215 with CODE (219) Distronic (DTR)
ENGINE 112, 113 in MODEL 230 with CODE (219) Distronic (DTR)
ENGINE 112, 113, 271, 272, 646, 647, 648 in MODEL 211 with CODE (219) Distronic (DTR)
ENGINE 112, 113, 271, 612 in MODEL 209 with CODE (219) Distronic (DTR)
ENGINE 285 in MODEL 240 with CODE (219) Distronic (DTR)
ENGINE 113, 272 in MODEL 219 with CODE (219) Distronic (DTR)
Shown on models 211, 219

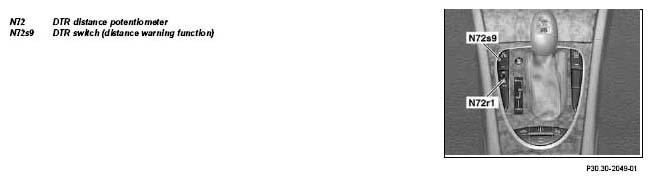

| Distronic switch block position | Model 220, 215 | GF30.30-P-3105-01K | |
| Model 230 | GF30.30-P-3105-01R | ||
| Models 209, 211, 219 | GF30.30-P-3105-01T | ||
| Model 240 | GF30.30-P-3105-01M | ||
| Switch block | Distronic - task Distance potentiometer: influences the distance to the vehicle ahead. Switch for distance warning function: Switches the separate distance warning function on and off for a switched off Distronic (warning tone and loudspeaker symbol). |
||
| Distronic switch block design | The Distronic switch block consists of the distance potentiometer and the distance warning function switch. | ||
| Distronic switch block function | Upper control panel control unit (models 215, 220) or lower control panel control unit (models 209, 211, 219, 230, 240) detect the switch and potentiometer position and transfer them onto the CAN interior compartment. |
