Distronic radar sensor, location/task/design/function - GF30.30-P-3103K: Notes
ENGINES 112, 113, 137, 275, 613, 628 in MODEL 220 up to 31.5.04 with CODE (219a) Distronic (DTR)
ENGINES 113, 137, 275 in MODEL 215 up to 31.5.04 with CODE (219a) Distronic (DTR)
ENGINES 112, 113, 275 in MODEL 230 up to 31.5.04 with CODE (219a) Distronic (DTR)
ENGINES 112, 113, 271, 646, 647, 648 in MODEL 211 up to 31.5.04 with CODE (219a) Distronic (DTR)
ENGINES 112, 113, 271, 612 in MODEL 209 up to 31.5.04 with CODE (219a) Distronic (DTR)
ENGINES 285 in MODEL 240 with CODE (219a) Distronic (DTR)
Example

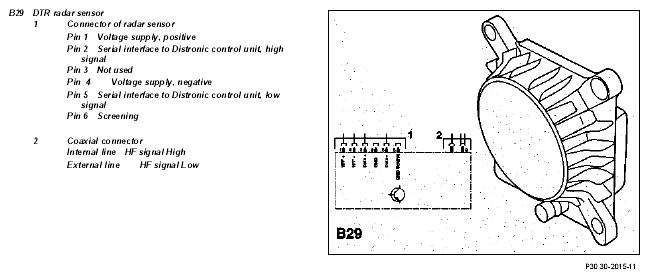

| Distronic radar sensor position | Models 209, 211, 215, 220, 230 | GF30.30-P-3103-01K | |
| MODEL 240 | GF30.30-P-3103-01M | ||
| Distronic radar sensor, task | Transmitting radar signals and receiving the radar signals reflected by obstacles. | ||
| Distronic radar sensor, design | The radar sensor is installed in an aluminum housing. The voltage supply comes from the Distronic control unit. The analog preprocessed sensor data is transmitted to the control unit via a coaxial connector. | ||

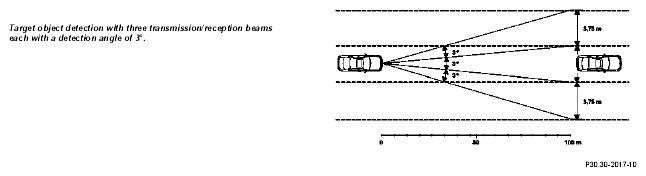

| Radar sensor Distronic function | Three transmission/reception beams each have a detection angle of 3°. The distances and the relative speeds to the target objects ahead are detected from the received signals on the basis of the signal propagation times. The range is as much 150 m. |
