Cruise control pushbutton switch, location/task/design/function - GF30.30-P-3100AM
ENGINES 113.990 /991 /992 /993 /995

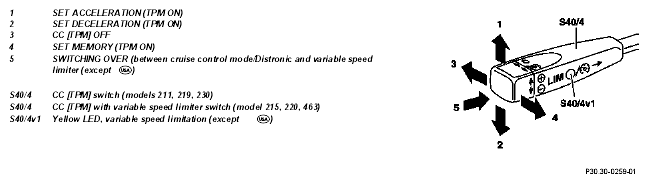

| Cruise control switch location | The cruise control pushbutton switch is located at the upper left on the steering column. | ||
| Cruise control switch task | The CC pushbutton switch switches the cruise control functions, Distronic (with Distronic) and variable speed limitation (except |
||
| Cruise control switch design | The cruise control pushbutton switch is a pushbutton switch with a number of switching contacts. | ||
| Cruise control switch function | When the cruise control pushbutton switch is operated, two switching contacts are always activated simultaneously. The actual input takes place by closing the switching contacts (storing the speed). The safety contact must close simultaneously so that the input is accepted. | ||
| The switching signals are detected by the steering column module (N80a) and transmitted to the CAN data bus. |
