Working pressure regulating valve, function - GF27.60-P-5131-01G
Transmission 722.6
Operation

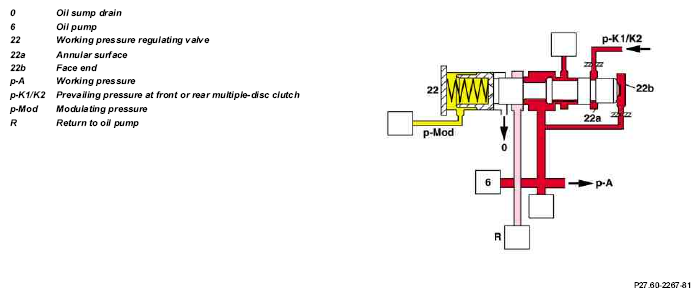

The working pressure (p-A) is regulated at the working pressure regulating valve (22) depending on the load (modulating pressure (p-Mod) and depending on the gear (p-K1, p-K2). A minimum level (basic pressure) is adjusted by the spring in the working pressure regulating valve (22).
