Remove/install front seat - AR91.10-P-1000GH

MODEL 163.113 /128 /136 /154 /157 /172 /174 /175 with CODE (221b) Electrically adjustable driver and passenger seat

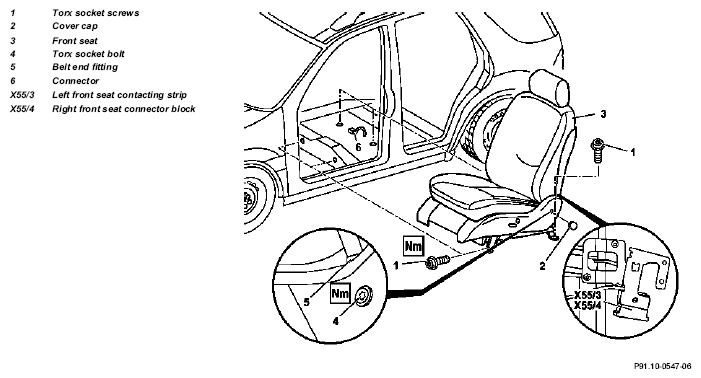

Fig 1: Identifying Front Seat Components

	Remove/install
1	Remove headrest	See owner's manual
2	Remove cover cap (2) from seat rail paneling	Set the seat height adjustment such that the screw on the belt end fitting is visible.
3	Unscrew internal Torx drive bolt (4) from the belt end fitting (5)		*BA91.40-P-1001-01D
		Torx bit set	Fig 2
4	Remove belt end fitting (5)
5	Unscrew internal Torx drive bolts (1) from the front seat console	Installation : Replace bolts.
			*BA91.10-P-1001-01B
		Torx bit set	Fig 2
6	Move the front seat (3) forward
7	Unscrew internal Torx drive bolts (1) from the back seat console	Installation: Replace bolts.
			*BA91.10-P-1001-01B
		Torx bit set	Fig 2
8	Detach connector (6) from the front left seat connector block (X55/3) and the front right seat connector block (X55/4)
9	Remove front seat (3)
10	Install in the reverse order

Front seats

Number	Designation		Model Series 163
BA91.10-P-1001-01B	Bolt of seating mounting bracket to vehicle floor	Nm	40

Safety belts/emergency tensioning retractors

Number	Designation		Model 163 up to 08/99	Model 163 as of 09/99
BA91.40-P-1001-01D	Belt end fitting screw	Nm	35	35

Fig 2: Identifying Torx Bit Set (000 589 01 10 00)
