High Oil Consumption (07.65/32)
Publication date: 2003-02-26Reference number: 07.65/32
HIGH OIL CONSUMPTION
TECHNICAL SERVICE BULLETIN
Reference Number(s): T-B-07.65/32, Date of Issue:
February 26, 2003
| MERCEDES-BENZ: | Model 163.1 up to Chassis No. 357786 |
| GROUP: | 07 - Mixture Information |
SUBJECT
High Oil Consumption
SERVICE INFORMATION

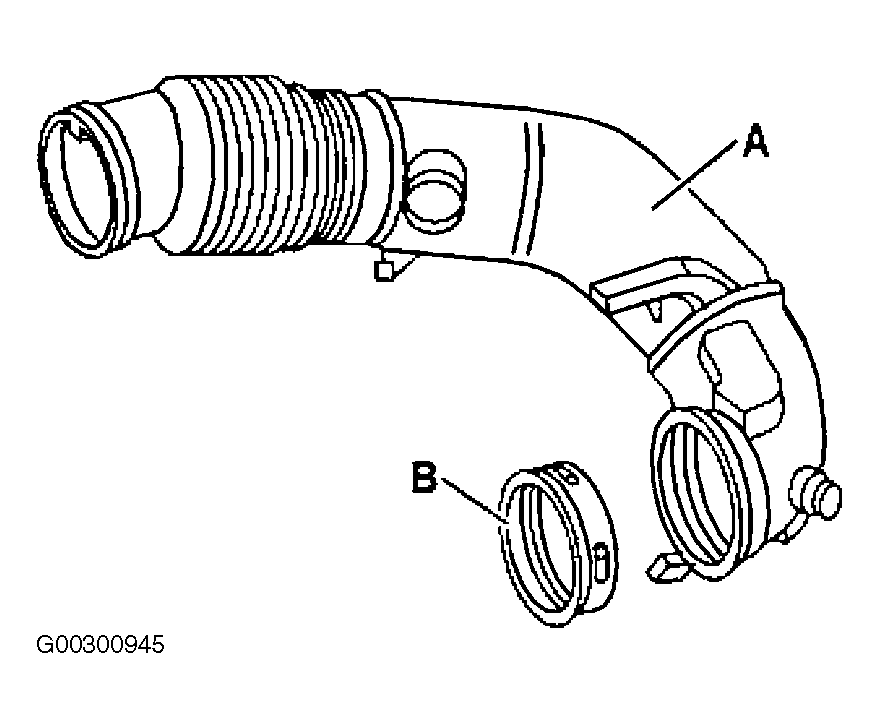

If you encounter instances in the above models of high oil consumption (reference WIS document no. AF18.00-P-8044D), the seal ring (B, Fig 1 ) between the intake pipe (A, Fig 1 ) and the throttle actuator (M16) may require replacement.
NOTE:
To prevent unnecessary removal, please observe the following WIS documents before proceeding:
- AF 18.00-P-8044D - High oil consumption.
- AR 18.00-P-0025AV - Measure oil consumption.
Refer to WIS document no. AR 07.07-P-1454A. To resolve, replace seal (B, Fig 1 ) between intake pipe (A, Fig 1 ) and throttle actuator (M16).
NOTE:
Use new seal according to parts ordering notes. Old seal part no. 112 141 0180 should no longer be used.
PARTS INFORMATION
PARTS INFORMATION
| Qty. | Part Name | Part Number |
|---|---|---|
| 1 | Gasket | 112 141 18 80 |
IN CASE OF WARRANTY
WARRANTY INFORMATION
| Damage Code | Operation Number | Labor Time (hrs.) | Model Indicator (s) |
|---|---|---|---|
| 09176 04 | 02 3813 | .5 hrs. | K1, K2, K3, K4, K5 |
