Power Steering Leaks (46.30/09A)

Publication date: 2002-06-12
Reference number: 46.30/09A

POWER STEERING LEAKS

TECHNICAL SERVICE BULLETIN

Reference Number(s): T-B-46.30/09a, Date of Issue: June 12, 2002

MERCEDES-BENZ:	All Model 163, Up to VIN A357702
GROUP:	46 - Steering System

Superceded Bulletin(s): T-B-46.30/09, Date of Issue: May 16, 2002

NOTE: This bulletin supersedes: T-B-46.30/09 dated May 16, 2002.

SUBJECT

Power Steering Leaks

SERVICE INFORMATION

If you encounter instances in Model 163 vehicles mentioned above of power steering leaks from the connection to the power steering cooler, a possible cause of this leak may be the clamp used to secure the power steering hose to the cooler not providing sufficient clamping force. Please perform the following:

Turn off engine and remove ignition key.
Open hood.
Loosen existing clamp (1, Fig 1 ) and open sufficiently to remove from around hose (2, Fig 1 ). Clamp (1, Fig 1 ) may be discarded.
Open replacement clamp (3, Fig 1 ) to fit over hose (2, Fig 1 ).
Place replacement clamp in proper position around hose (2, Fig 1 ) and tighten sufficiently to secure hose.
Check power steering fluid level, correct if necessary. Please refer to document AP46.00-P-4611BB.
Start vehicle and check for leakage.
Close hood.

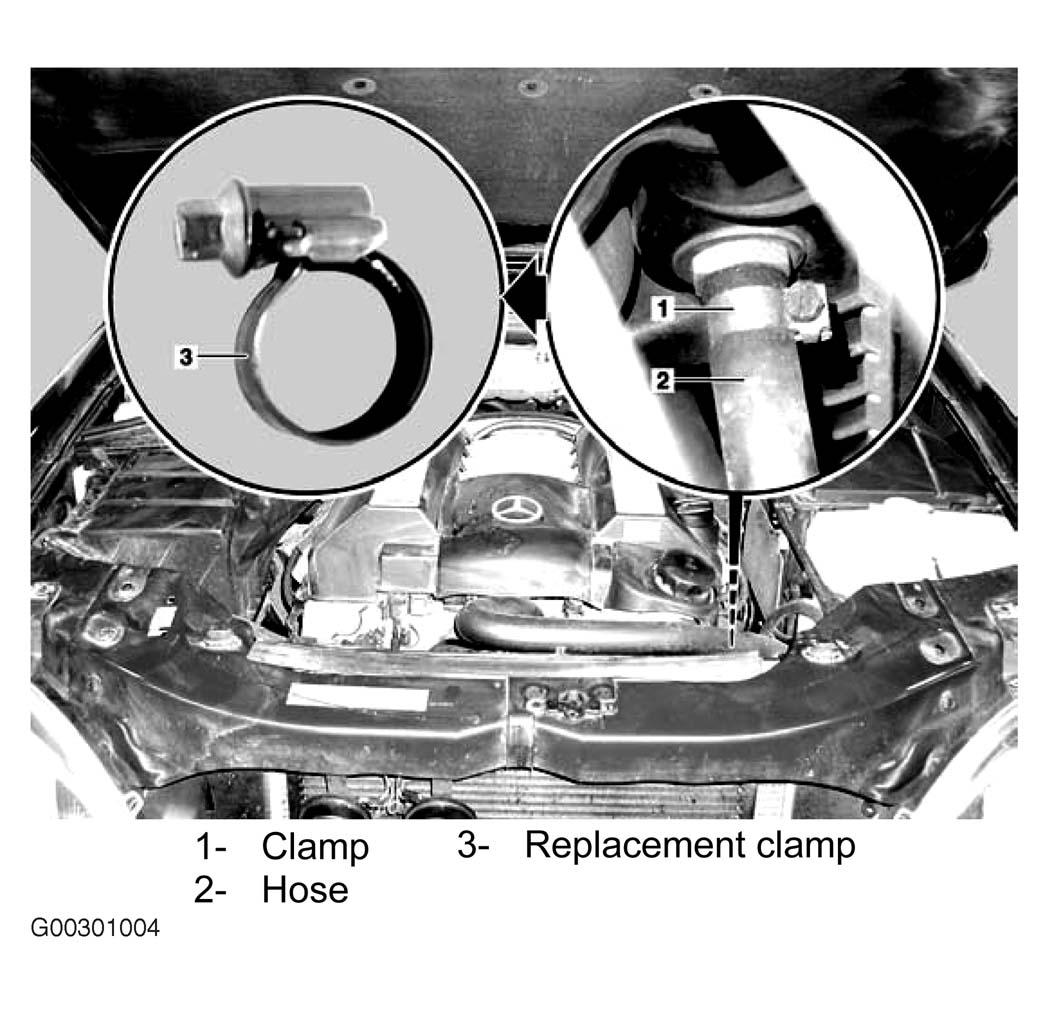

Fig 1: Hose Clamp On Power Steering Hose

PARTS INFORMATION

Qty.	Part Name	Part Number
1	Clamp	202 995 01 10

IN CASE OF WARRANTY

Operation: Clamp - Power steering hose, replace (02-3600)

WARRANTY INFORMATION

Damage Code	Operation Number	Labor Time (hrs.)	Model Indicator (s)
46537 04	02 3600	.2	K0
