Front footwell vent air temperature sensor, location/task/function - GF83.57-P-2117GI
MODEL 163 as of 1.9.01 with CODE (580a) Automatic air conditioning

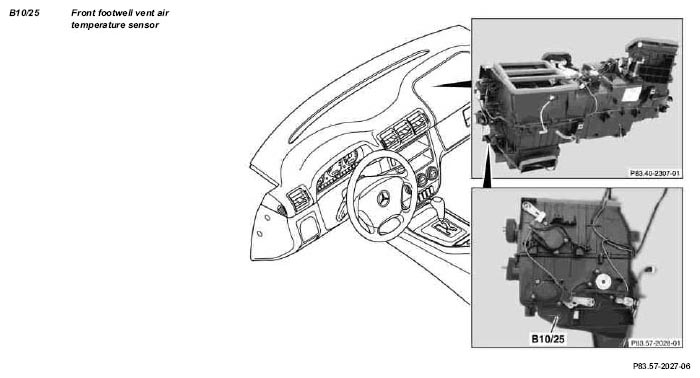

| Front footwell vent air temperature sensor, location | The front footwell vent air temperature sensor (B10/25) is located to the left of the automatic air conditioning box below the instrument panel. | ||
| Front footwell vent air temperature sensor, task | The front footwell vent air temperature sensor (B10/25) records the temperature of the air flowing in the front footwell and sends it to the AAC push-button control module (N22). | ||
| Front footwell vent air temperature sensor, function | The vent air's recorded temperature value is compared by the AAC push-button control module (N22) with the setting in the temperature selector wheel and authorizes a corresponding adjustment to the blending air flap to be made depending upon the result. |
