Fresh air/recirculated air flap actuator, location/task/function - GF83.30-P-2116GC
MODELS 163 up to 31.8.01, 168 up to 28.2.01 with CODE (580) Air conditioning or Tempmatic for USA
MODEL 163 as of 1.9.01 with code (580a) Automatic air conditioning

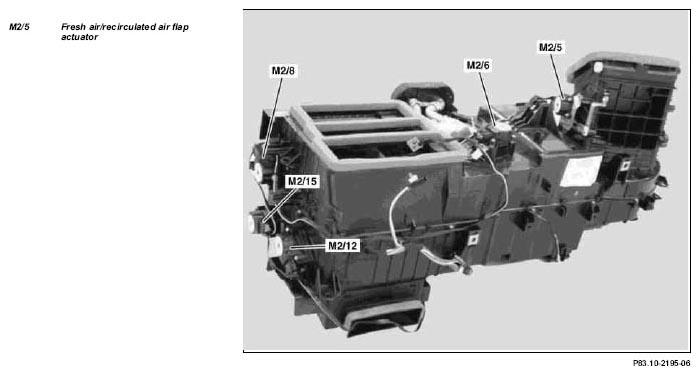

Shown on model 163 as of 1.09.01
| Fresh air/recirculated air flap actuator, position | The fresh air/recirculated air flap actuator (M2/5) is located on the side of the air inlet duct of the air conditioner housing. | ||
| Model 168 | GF83.30-P-2105-01GC | ||
| Model 163, up to 31.08.01 | GF83.30-P-2105-01GH | ||
| Fresh air/recirculated air flap actuator, task | The fresh air/recirculated air flap actuator serves to cut off the supply of fresh air when required. | ||
| Fresh air/recirculated air flap actuator, function | Model 168 | GF83.30-P-2105-02GC | |
| Model 163, up to 31.08.01 | GF83.30-P-2105-02GH | ||
| Model 163 as of 1.09.01 | GF83.30-P-2105-02GI |
