Electronic Accelerator Test (Steps 4.0 & 5.0)

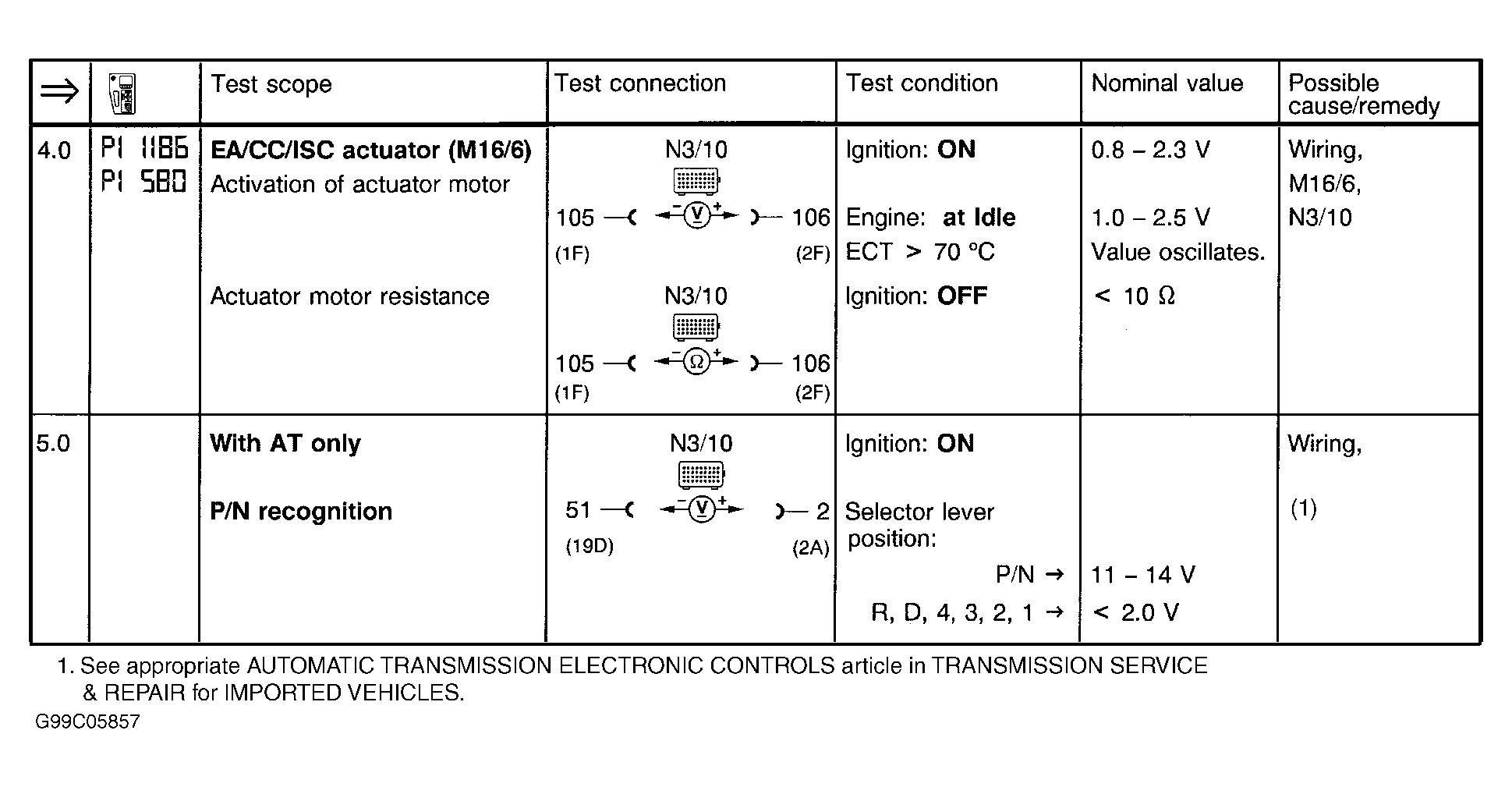

Fig 1: Electronic Accelerator Test (Steps 4.0 & 5.0)

G99C05857

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
