Home >> Mercedes Benz >> 2000 >> ML430 >> Repair and Diagnosis >> Engine Performance >> System >> Engine Controls - Self-Diagnostics With Codes >> Diagnostic Trouble Code Identification >> Electronic Accelerator Tests >> Electronic Accelerator Test (Steps 3.0 & 3.1)

Electronic Accelerator Test (Steps 3.0 & 3.1)

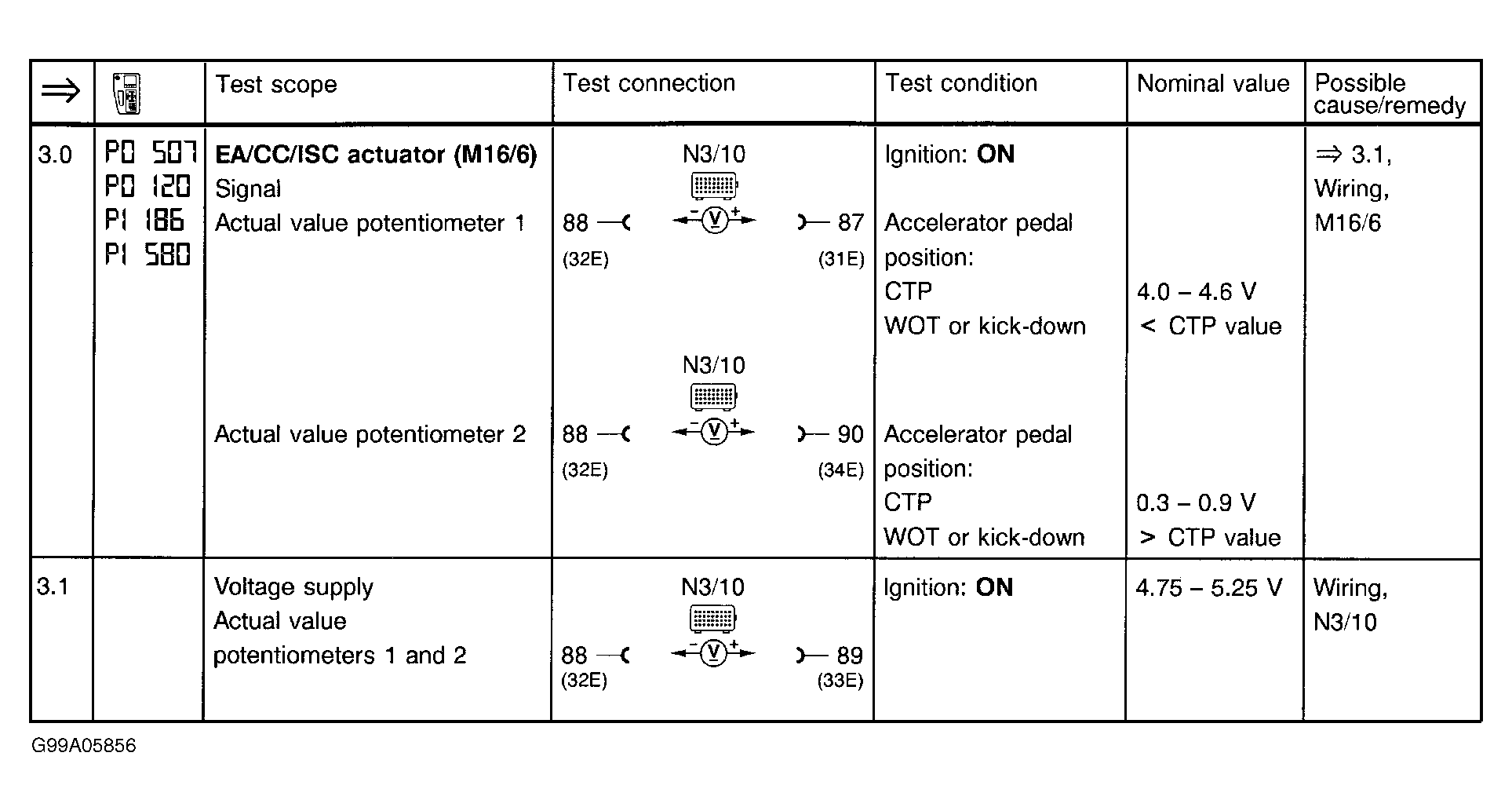

Fig 1: Electronic Accelerator Test (Steps 3.0 & 3.1)

G99A05856

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
