2.3L (Engine 111)

NOTE: The following graphics apply to C230 (1997-2000) and SLK230 (1998-2000). See Fig 1 -Fig 9 .

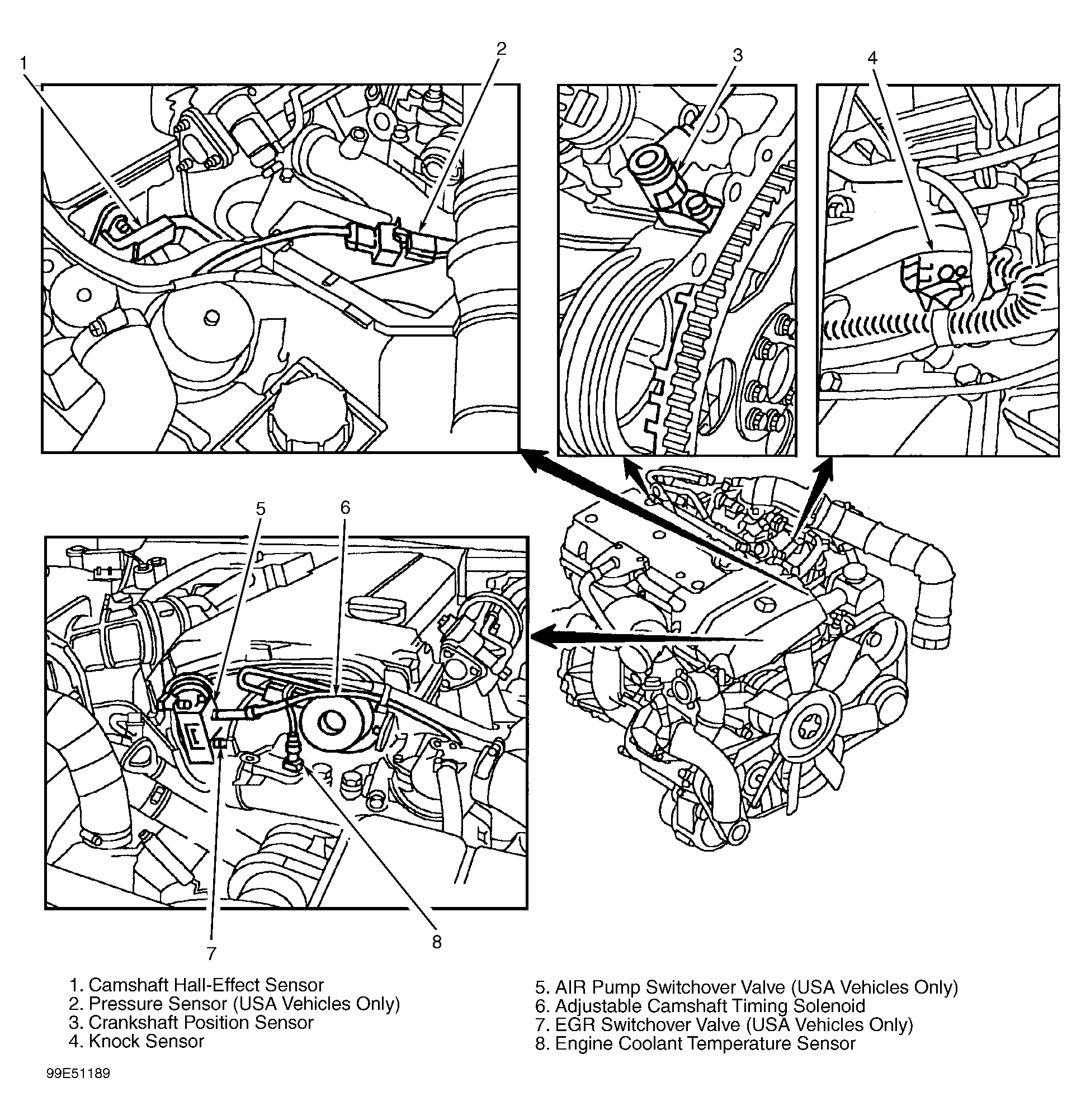

Fig 1: Locating Engine Components (C230 & SLK230 - 1 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

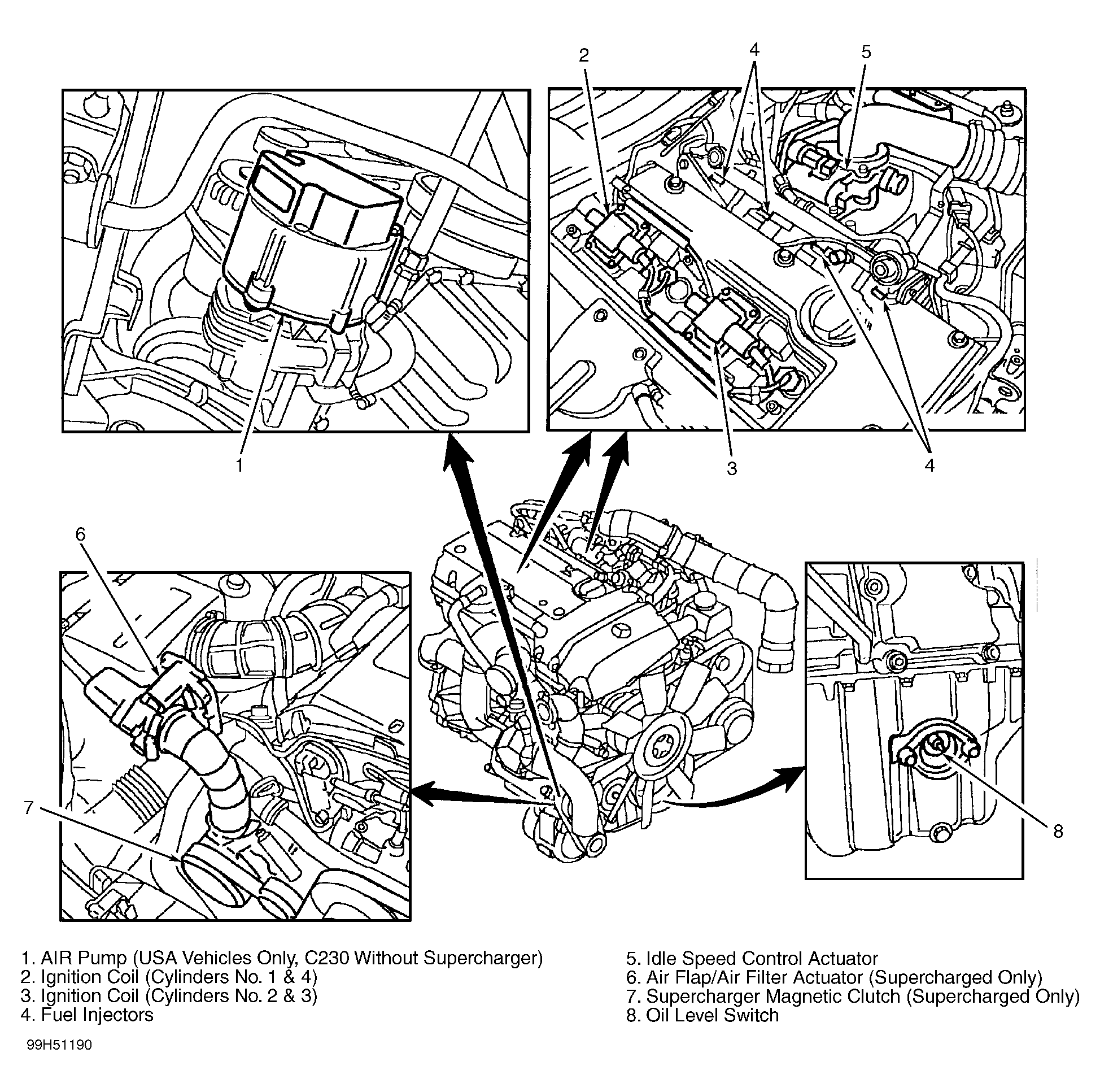

Fig 2: Locating Engine Components (C230 & SLK230 - 2 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

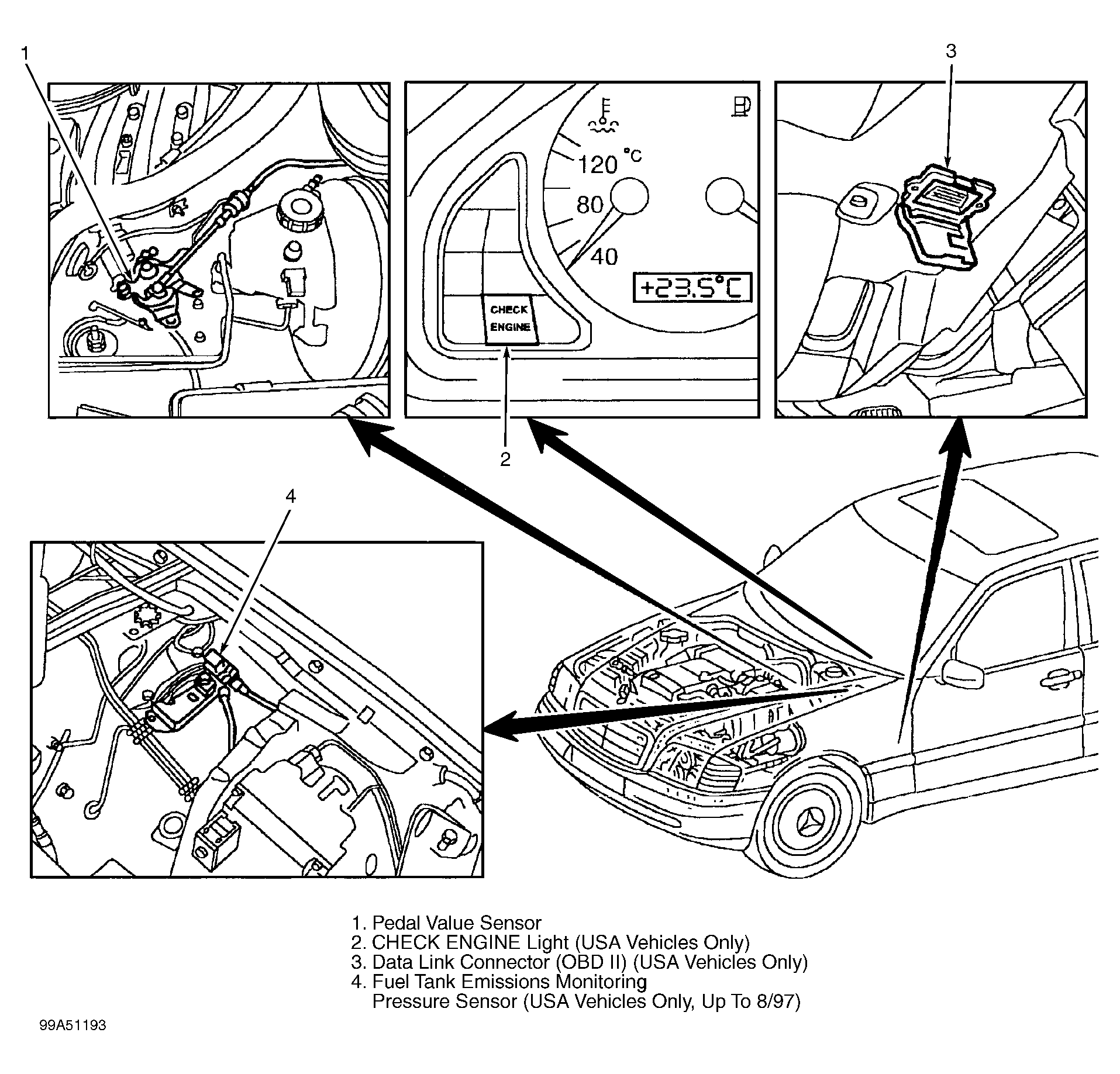

Fig 3: Locating System Components (C230 - 1 Of 4)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

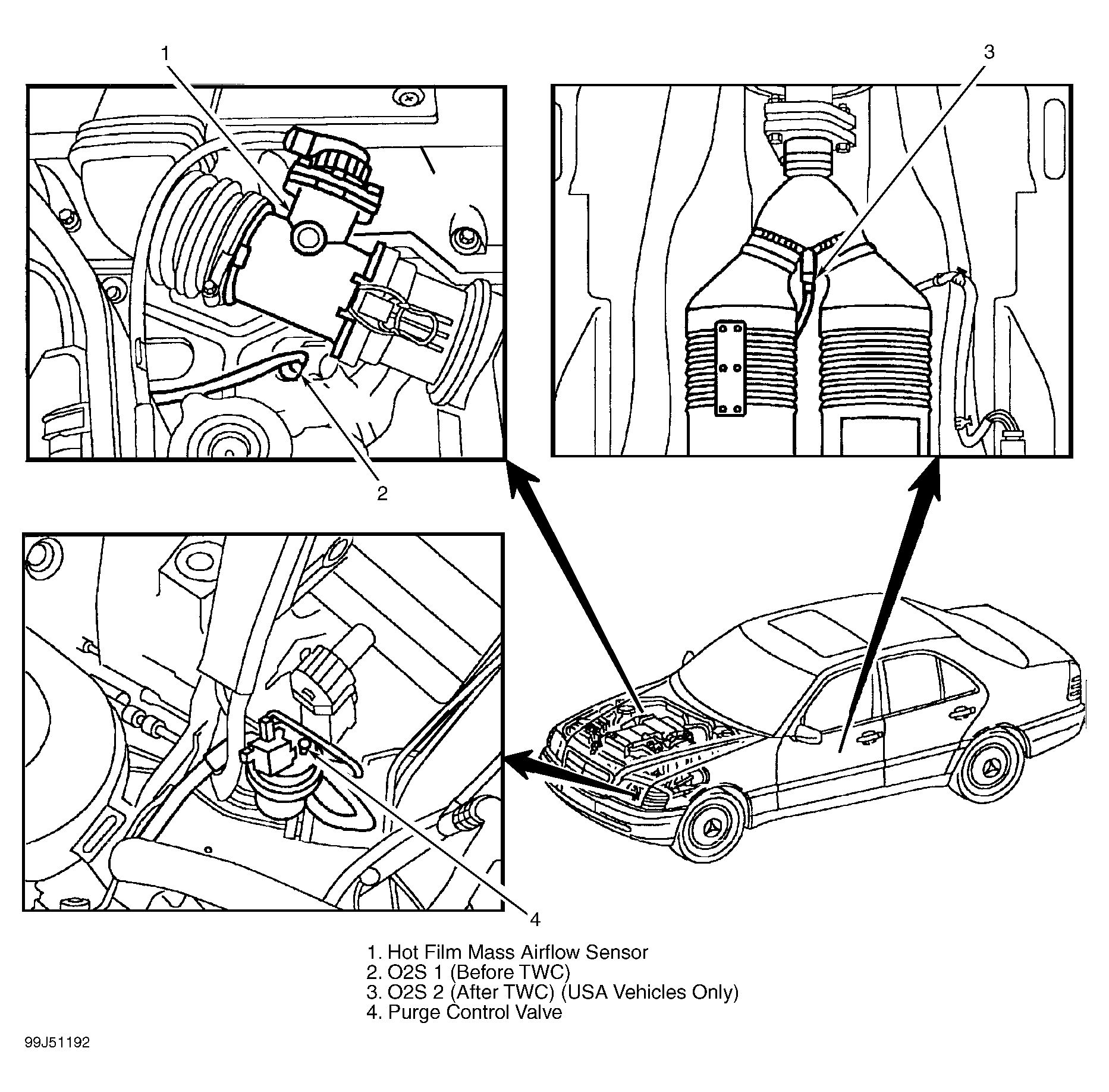

Fig 4: Locating System Components (C230 - 2 Of 4)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

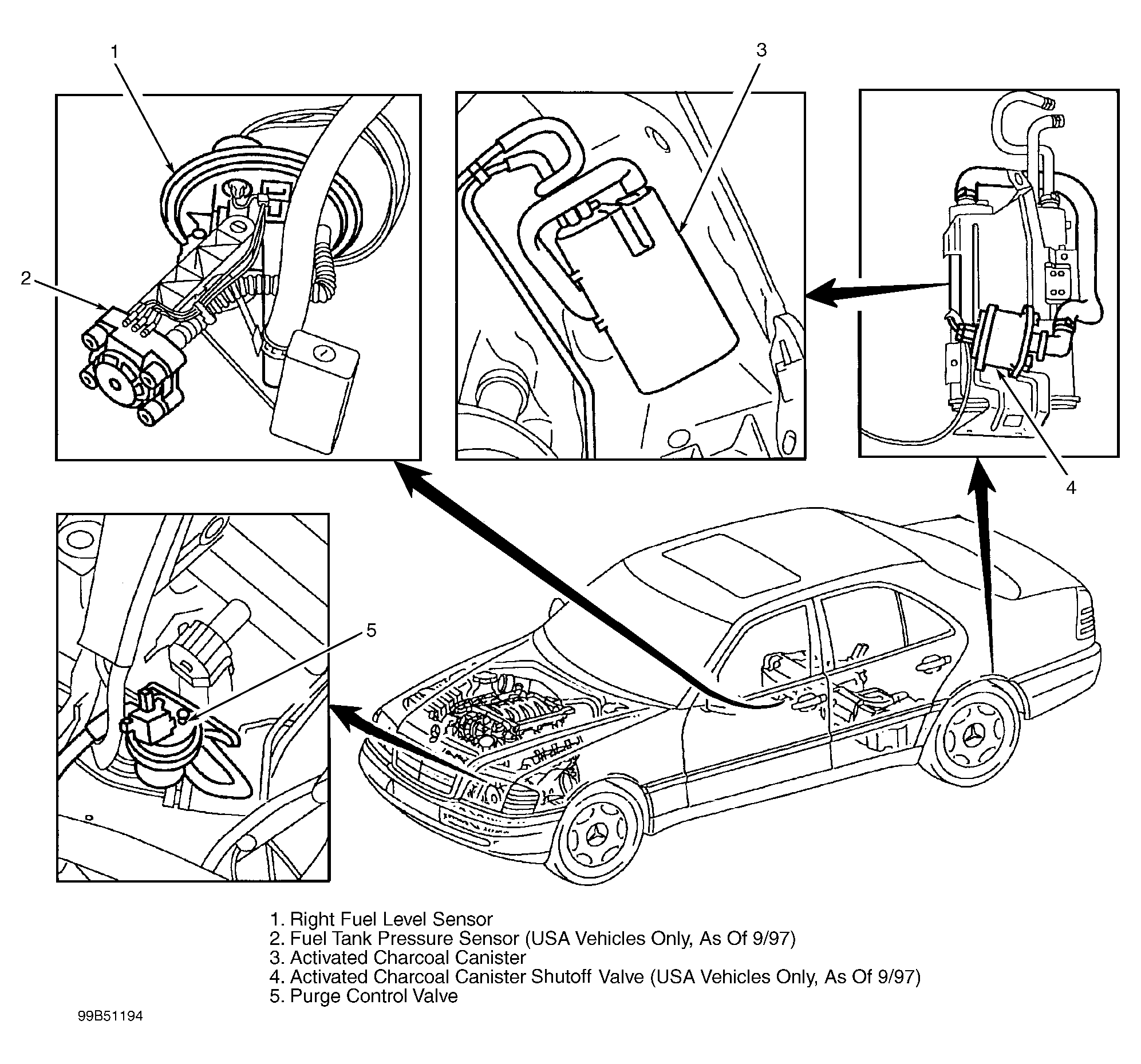

Fig 5: Locating System Components (C230 - 3 Of 4)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

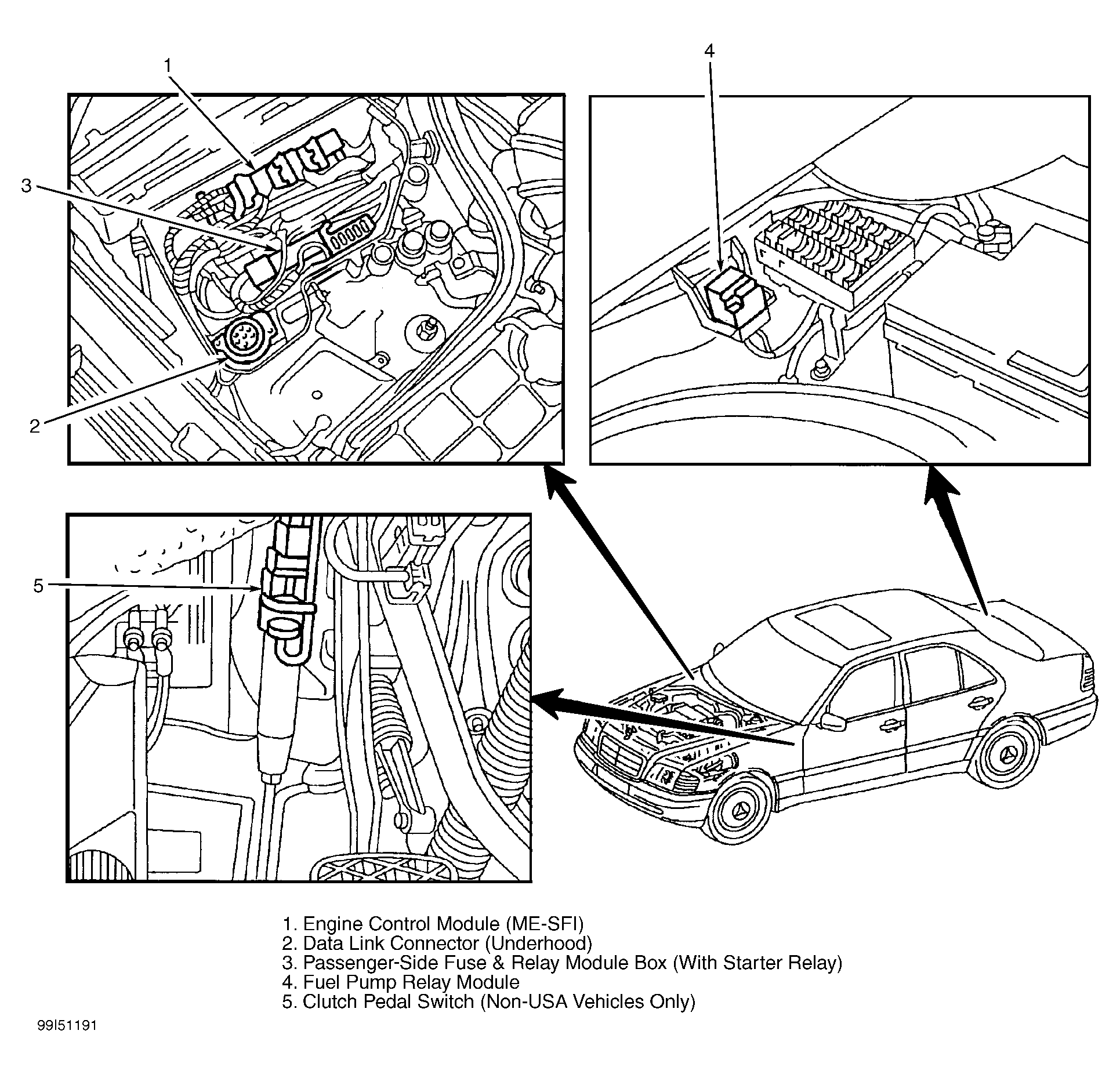

Fig 6: Locating System Components (C230 - 4 Of 4)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

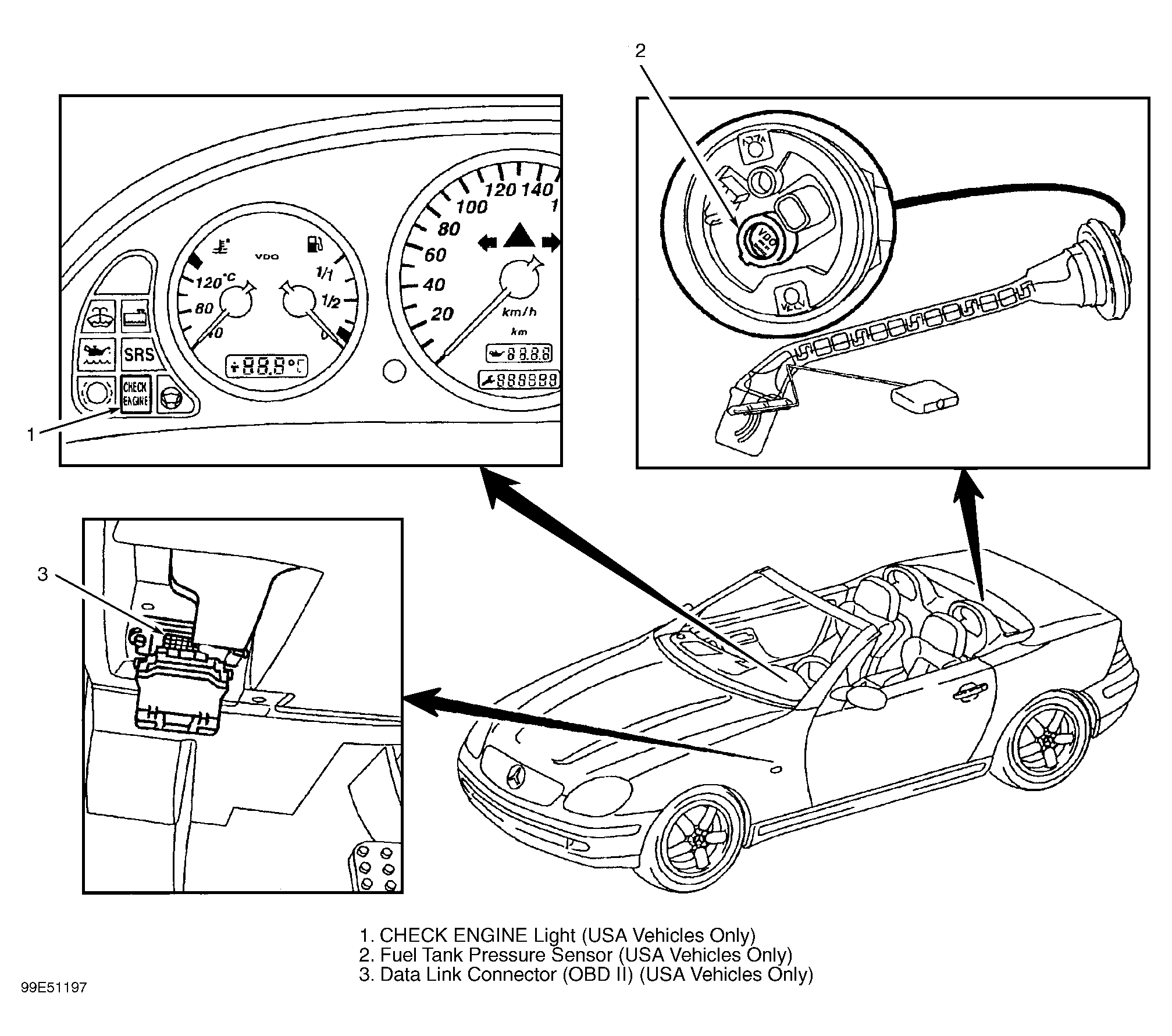

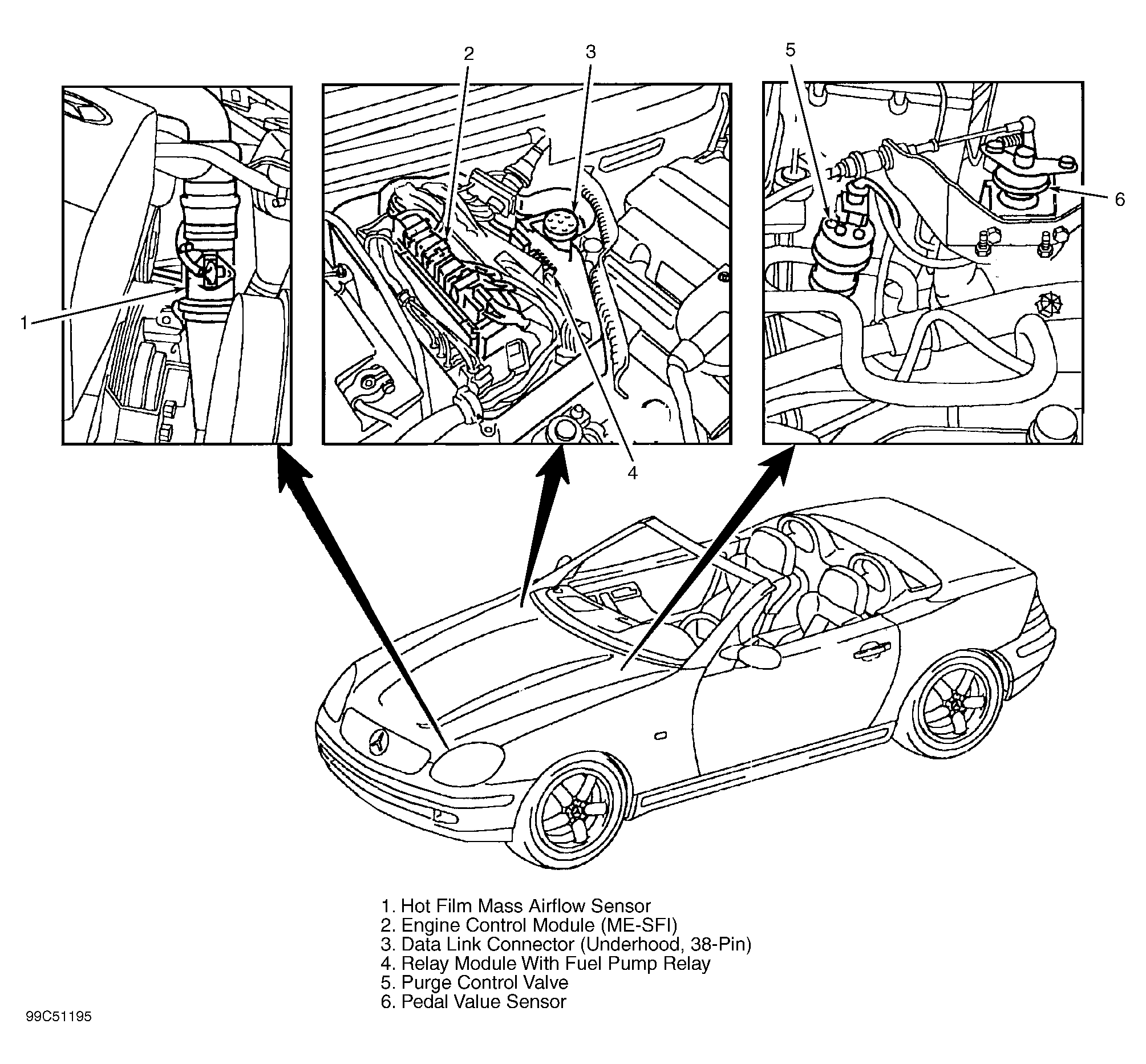

Fig 7: Locating System Components (SLK230 - 1 Of 3)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

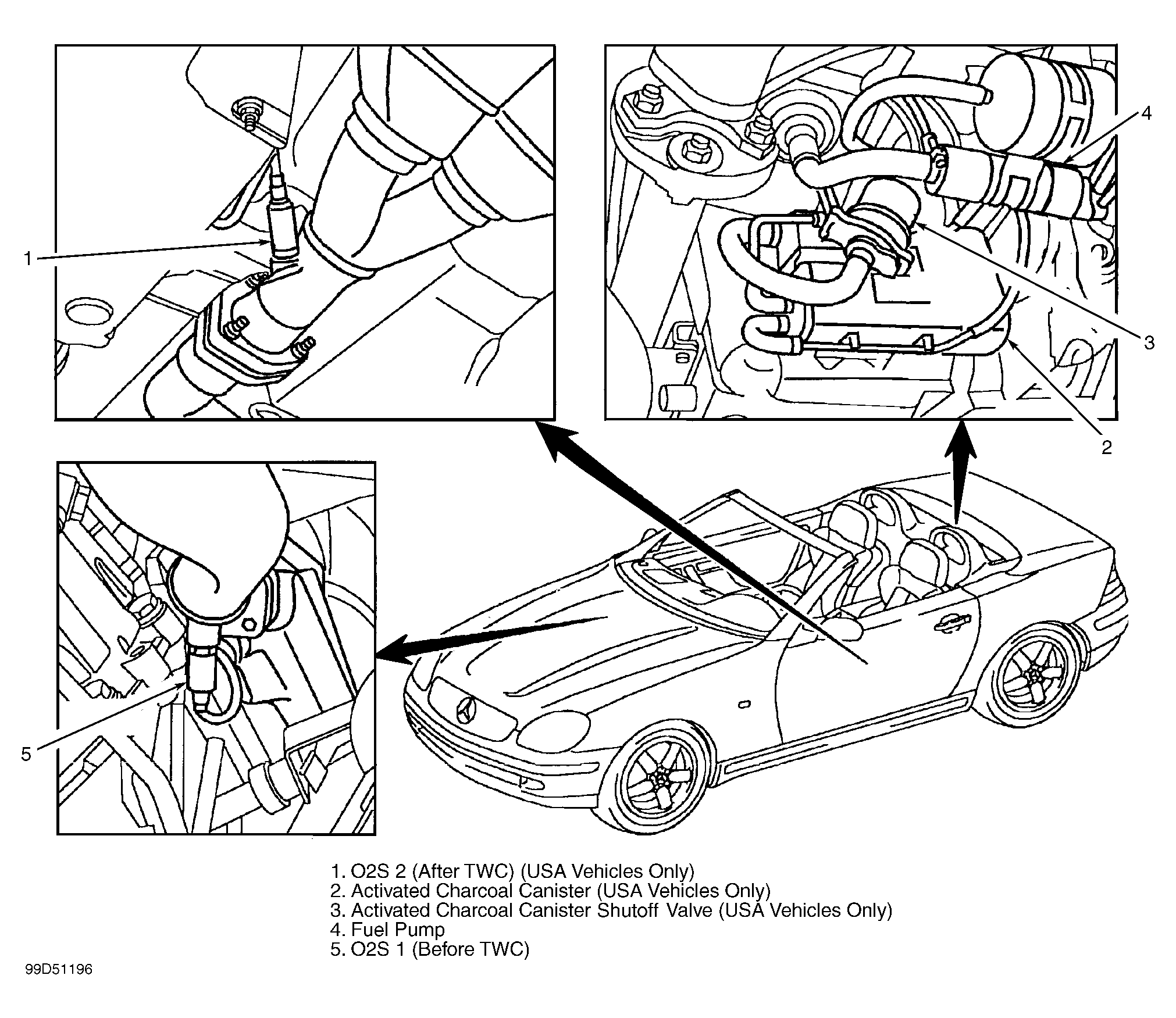

Fig 8: Locating System Components (SLK230 - 2 Of 3)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

Fig 9: Locating System Components (SLK230 - 3 Of 3)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
