Remove/install crankshaft position sensor - AR15.12-P-2133A

ENGINE 112.910 in MODEL 202.026 /086

ENGINE 112.920 in MODEL 202.029 /089

ENGINE 112.921 in MODEL 210.063 /081 /263 /281

ENGINE 112.922 in MODEL 220.063

ENGINE 112.923 in MODEL 129.059

ENGINE 112.940 in MODEL 208.365 /465

ENGINE 112.941 in MODEL 210.065/082/265/282

ENGINE 112.942 in MODEL 163.154

ENGINE 112.943 in MODEL 129.064

ENGINE 112.944 in MODEL 220.065/165

ENGINE 113.940 in MODEL 210.070 /270

ENGINE 113.941 in MODEL 220.070/170

ENGINE 113.960 in MODEL 215.375,220.075/175

ENGINE 113.961 in MODEL 129.068

ENGINE 112.945 in MODEL 463.209 /232 /233 /244 /245 /250

ENGINE 113.944 in MODEL 202.033 /093

ENGINE 113.980 in MODEL 210.074/274

ENGINE 113.943 in MODEL 208.370 /470

ENGINE 113.984 in MODEL 208.374

ENGINE 113.981 in MODEL 163.174

ENGINE 112.912 in MODEL 203.061/261,209.361 /461

ENGINE 112.946 in MODEL 203.064 /264

ENGINE 112.947 in MODEL 170.465

ENGINE 112.960 in MODEL 170.466

ENGINE 113.942 in MODEL 163.172

ENGINE 112.961 in MODEL 203.065 /265

ENGINE 113.965 in MODEL 163.175

ENGINE 113.963 in MODEL 230.475

ENGINE 112.913 in MODEL 211.061 /261

ENGINE 112.949 in MODEL 211.065/265

ENGINE 113.967 in MODEL 211.070/270

ENGINE 113.962 in MODEL 463.206 /240 /241 /247 /248 /249 /254

ENGINE 113.982 in MODEL 463.243 /246

ENGINE 112.955 in MODEL 209.365 /465

ENGINE 112.916 in MODEL 203.081 /281

ENGINE 112.953 in MODEL 203.084 /284

ENGINE 112.973 in MODEL 230.467

ENGINE 112.972 in MODEL 220.067/167

ENGINE 112.970 in MODEL 163.157

ENGINE 112.975 in MODEL 220.087/187

ENGINE 113.948 in MODEL 220.083/183

ENGINE 113.966 in MODEL 220.084/184

ENGINE 112.917 in MODEL 211.080/280

ENGINE 112.954 in MODEL 211.082/282

ENGINE 113.969 in MODEL 211.083/283

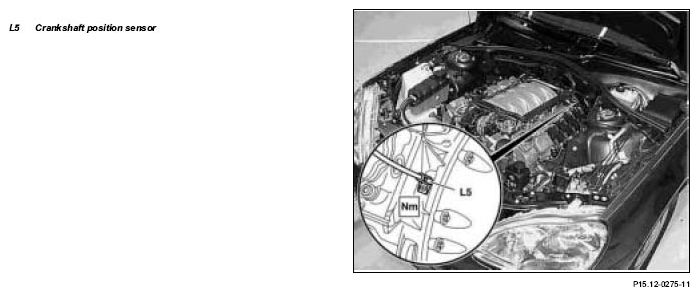

Fig 1: Identifying Crankshaft Position Sensor - Shown On Engine 113 In Model 220

	Remove/install
1.1	Remove engine cover with integrated air filter	All except Engine 112.960 in Model 170.466, Engine 112.961 in Model 203.065 /265 Remove air filter housing by lifting vertically up and off the cylinder head covers. Installation: Slightly moisten rubber retainers on cylinder head covers and sealing ring of hot film mass air flow sensor in the air filter housing with lubricating paste
1.1	Remove engine cover with integrated air filter	Lubricating paste	*BR00.45-Z-1002-06A
1.2	Remove air filter housing	Engine 112.960 in model 170.466	AR09.10-P-1150SVK
1.2	Remove air filter housing	Engine 112.961 in model 203.065/ 265
2	Remove crankshaft position sensor (L5)		*BA15.10-P-1001-03A
3	Install in the reverse order
4	Re-initialize crankshaft position sensor (L5) using STAR DIAGNOSIS	If crankshaft position sensor (L5)was replaced, a re-initialization must be carried out with STAR-DIAGNOSIS in the menu item control unit adaptations.

Position sensor

Number	Designation		Engine 112.910/911/ 912/913/914/ 915/916/917/ 920/921/922/ 923/940/941/ 942/943/944/ 945/946/947/ 949/951/953/ 954/955/960/ 961/970/972/ 973/975/976	Engine 113.940/941/ 942/943/944/ 948/960/961/ 962/963/964/ 965/966/967/ 968/969/971/ 980/981/982/ 984/986/992/ 993/995
BA15.10-P-1001-03A	Crankshaft position sensor to engine block	Nm	8	8

Repair materials

Number	Designation	Order number
BR00.45-Z-1002-06A	lubricating paste	A 000 989 01 60
