Electrical System Tests (Section 23)

NOTE: For help in identifying heated seat harness connectors X55/3 and X/55/4, see Fig 4 .

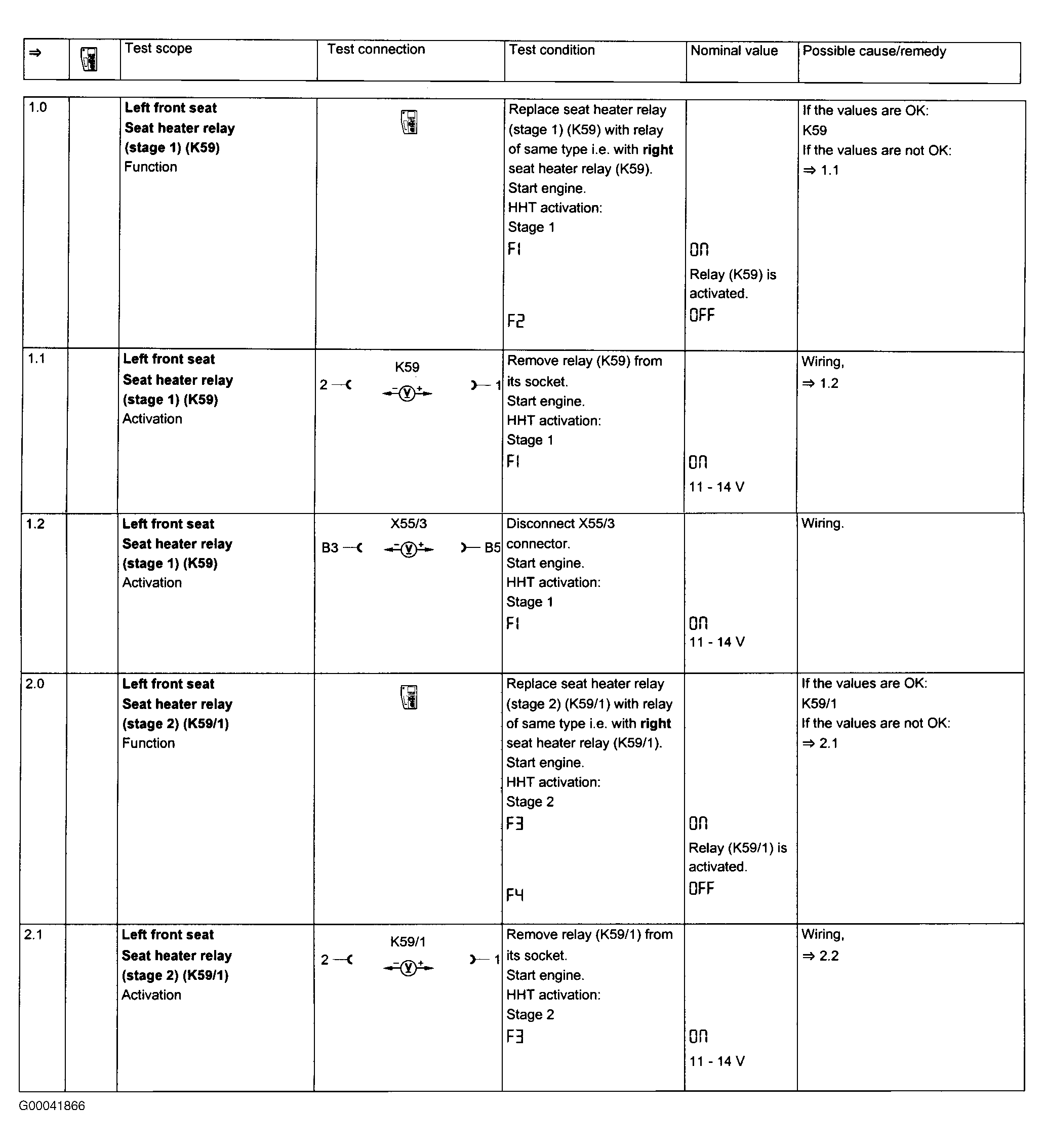

Fig 1: System Tests - Steps 1.0-2.1 (1 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

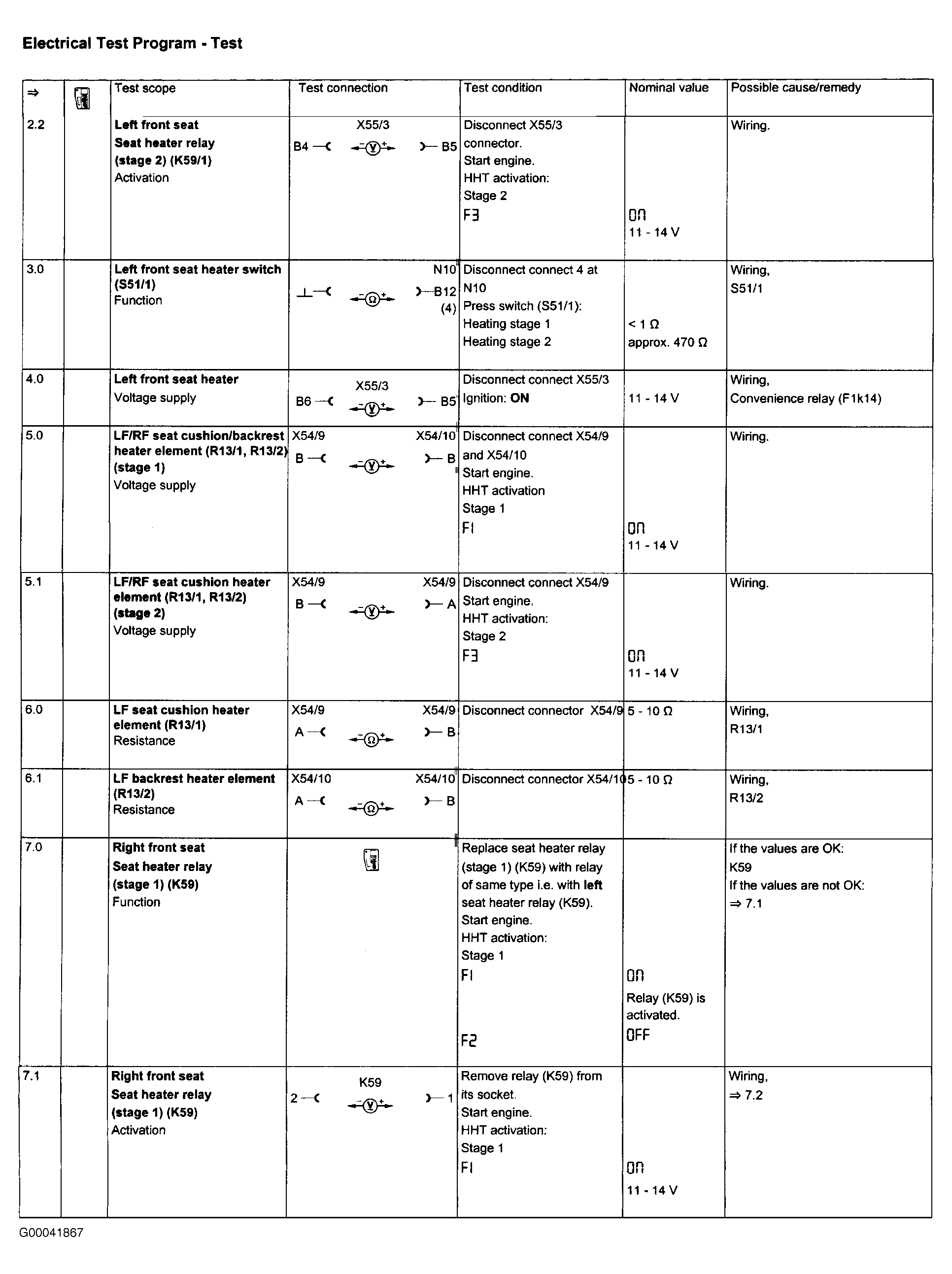

Fig 2: System Tests - Steps 2.2-7.2 (2 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

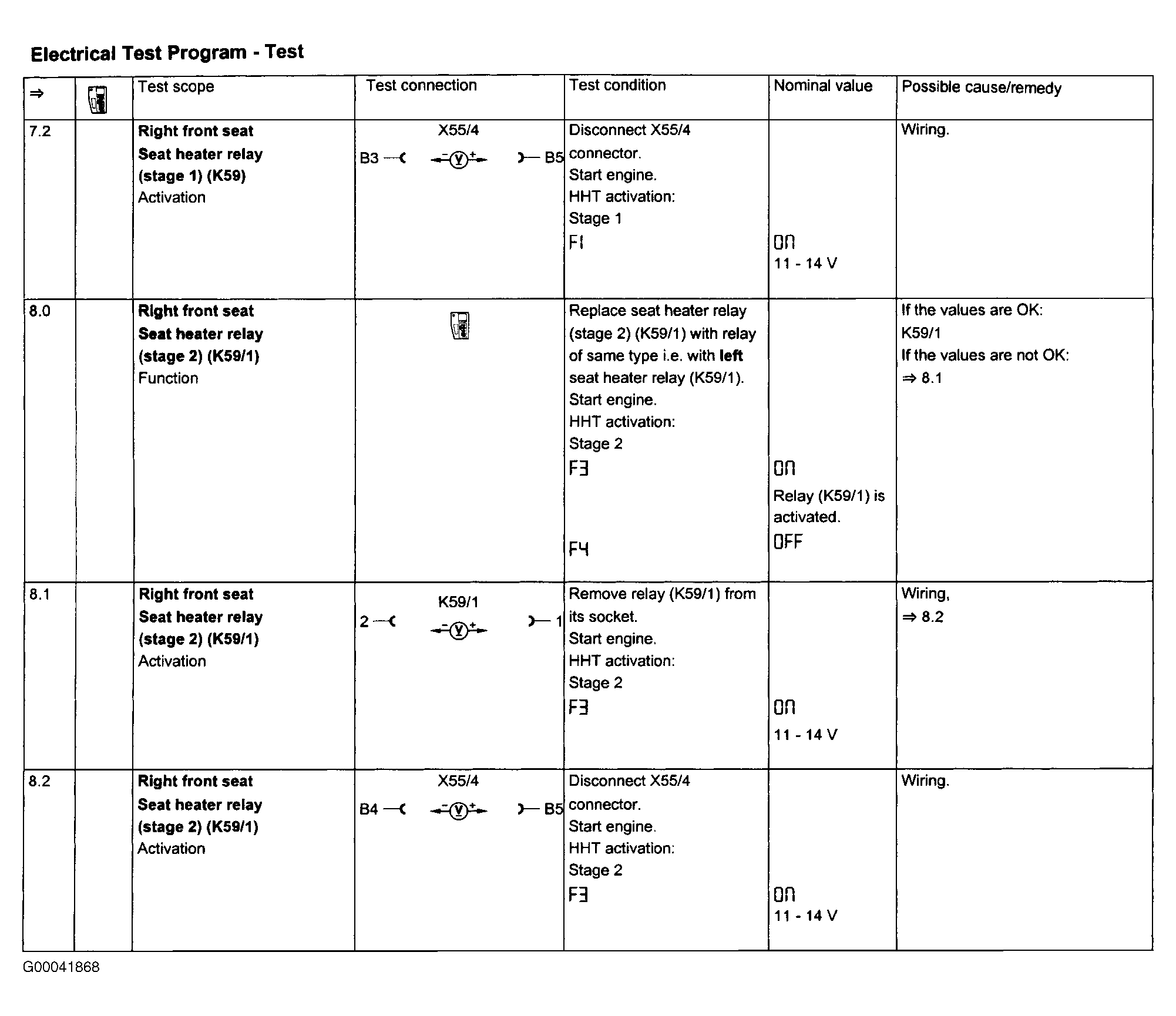

Fig 3: System Tests - Steps 7.2-8.2 (3 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION

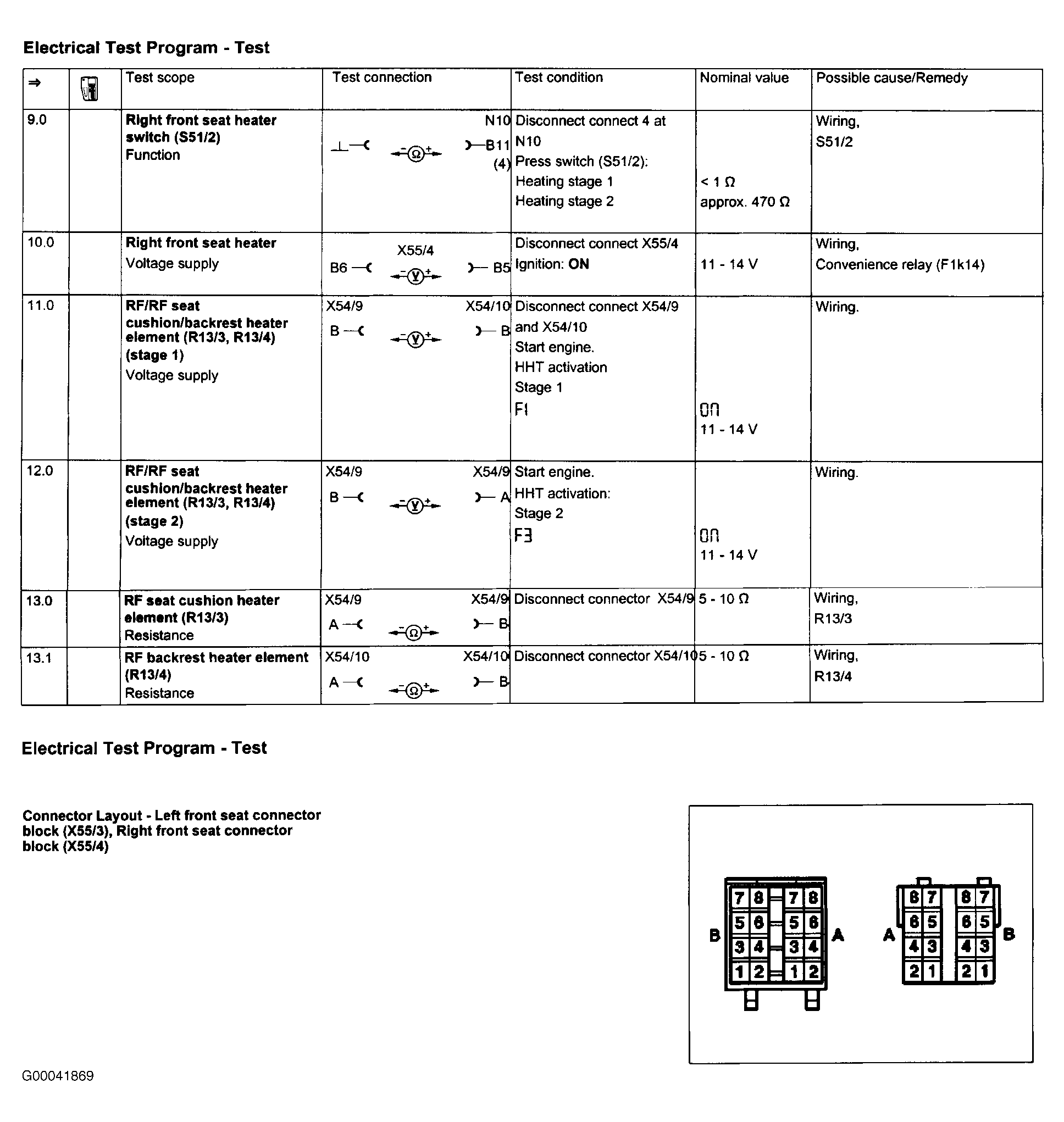

Fig 4: System Tests - Steps 9.0-13.1 (4 Of 4)

Courtesy of DAIMLERCHRYSLER CORPORATION
