Description & Operation: Notes

Power seat system consists of 4 motors per front seat, control switches, relays, control modules and related wiring. Power seat can be operated with ignition switch off, if driver's or passenger's door is open. If all doors are closed, ignition switch must be in ACCESSORY or RUN position. Three memory positions can be programmed for each seat.

The following adjustments are available:

Seat Forward/Rearward
Front Height Up/Down
Rear Height Up/Down
Backrest Tilt

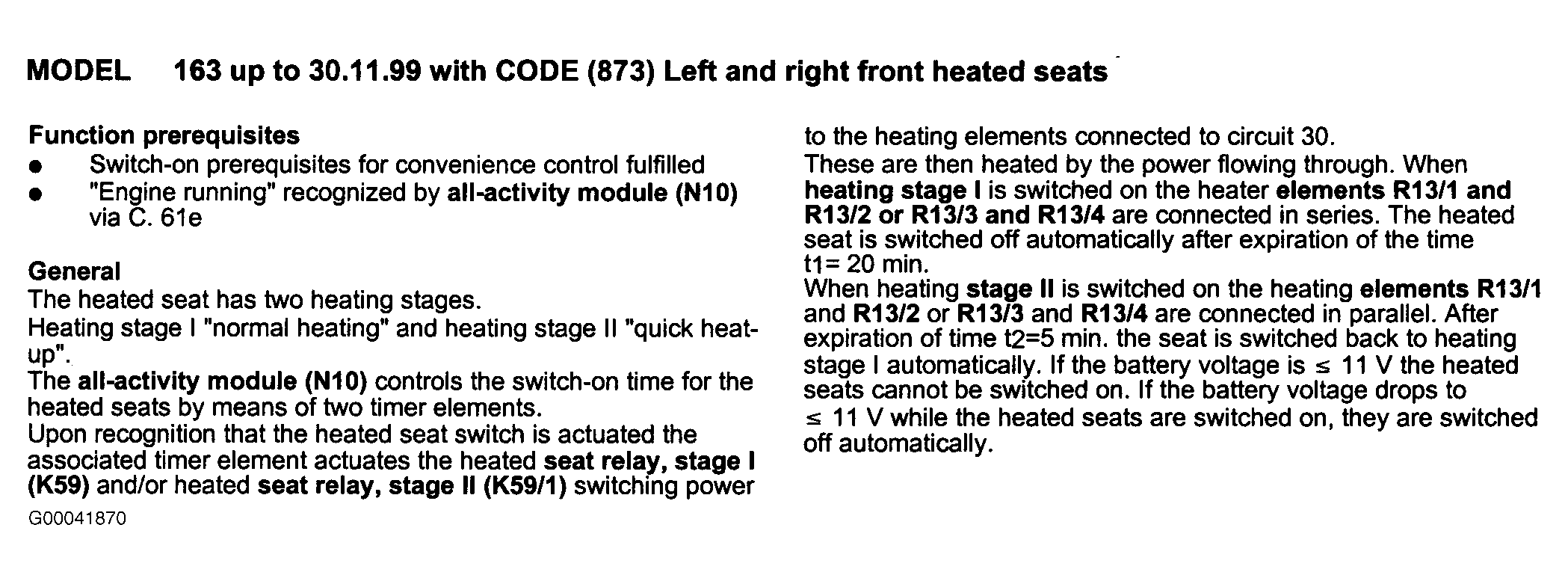

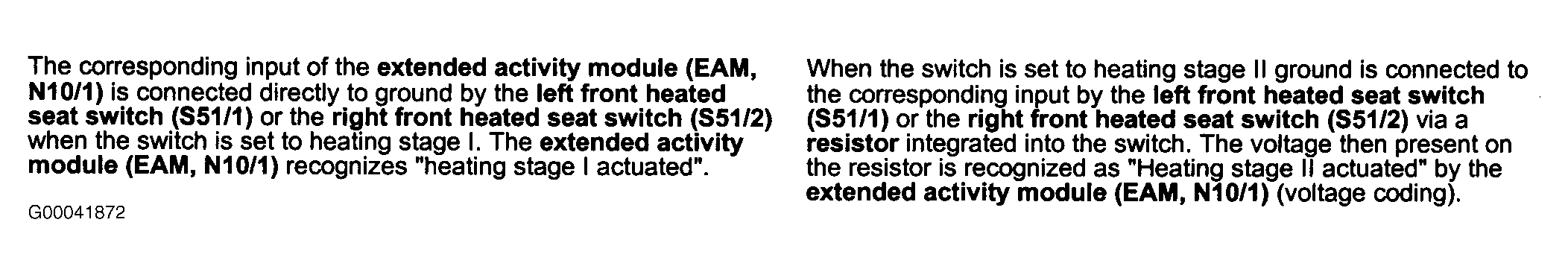

NOTE: Use following illustrations for description and operational helps. See Figure -Figure .
