Remove/install bottom engine compartment paneling - AR61.20-P-1105GH

MODEL 163.172 with ENGINE 113.942

MODEL 163.174 with ENGINE 113.981

MODEL 163.175 with ENGINE 113.965

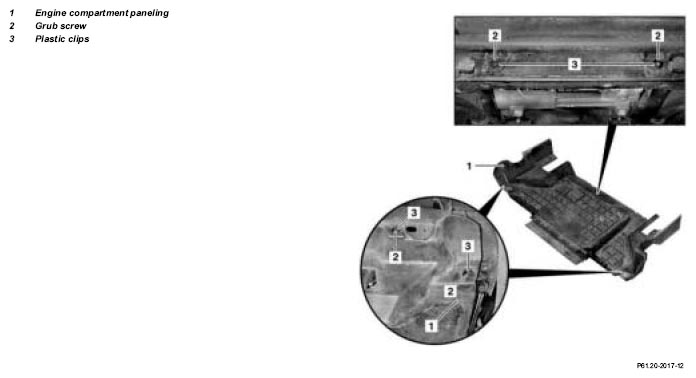

Fig 1: Identifying Bottom Engine Compartment Paneling Components

	Remove/Install
1	Remove grub screws (2) of plastic clips (3)	6 grub screws pins. Installation:  Check grub screws, replace if necessary.
2	Pull out plastic clips (3)	Installation:  Check plastic clips, replace if necessary.
3	Remove engine compartment panel (1)	Installation:  Ensure that engine compartment panel is positioned correctly.
4	Install in the reverse order
