Cruise control (CC) function - GF30.30-P-0001FA

ENGINE 112.923 /943, 113.961, 120.983 in MODEL 129

ENGINE 112.942 /970, 113.942 /965 in MODEL 163

ENGINE 111.943 /946 /958 /973 /983, 112.947 in MODEL 170

ENGINE 111.921 /944 /945 as of 1.8.99,

111.952/956/974,

111.975 as of 1.8.99,

112.910/920,113.944

in MODEL 202

ENGINE 111.951 /955, 112.912 /916 /946 /953 in MODEL 203

ENGINE 111.945/975#2,

111.945 /975 #0 as of 1.8.99,

111.956/982, 112.940, 113.943

in MODEL 208

ENGINE 111.957, 112.911 /914/921 /941, 113.940/980,

111.942/947 as of 1.8.99

in MODEL 210

ENGINE 112.922 /944 /972 /975, 113.941 /948 /960 /966, 137.970 in MODEL 220

ENGINE 113.960, 137.970 in MODEL 215

ENGINE 112.973, 113.963 in MODEL 230

ENGINE 112.913 /917 /949 /954, 113.967 /969 in MODEL 211

ENGINE 112.912 /955, 113.968 in MODEL 209

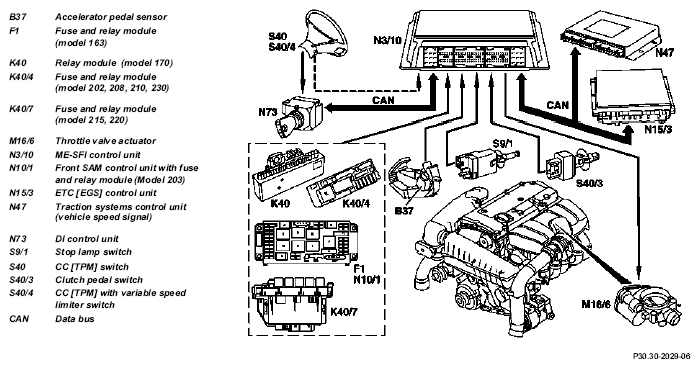

Shown on engine 111 EURO3/4 B37

Task

Maintaining the preselected vehicle speed constant irrespective of the engine load, without operation of the accelerator pedal.

Function

The cruise control function is integrated in the engine control unit. It can be activated from > 40 km/h with the cruise control switch. The engine control unit operates the throttle valve actuator for the cruise control function with the aid of the input signals and the position of the cruise control switch.

The cruise control mode is switched off by:

• pushing the cruise control push-button switch (S40) or variable cruise control push-button switch (S40/4) into the "OFF" position
• Operating the service brake
• Moving selector lever into position "N"
• Control intervention function of traction system

Vehicles with column sleeve module (MRM)

The signals from the push-button switch for the cruise control are detected by the steering column module and transmitted to the CAN data bus.

Vehicles with EZS control unit without column sleeve module (MRM)

The signals from the push-button switch for the cruise control are detected by the control unit EIS and transmitted to the CAN data bus.

Vehicles without EZS control unit

The signals from the cruise control switch are transmitted directly to the engine control unit.

Vehicles with manual transmission (MT)

Cruise control remains active during gear change, in other words the cruise control is not switched off when the clutch is operated.

Traction systems control unit

Transmits the vehicle speed signal via CAN to the ME control unit.

	Motor electronics control unit, location/task/ design/function	other than engine 111 EVO	GF07.61-P-5000F
		Engine 111 EVO	GF07.61-P-5000GS
	Cruise control switch, location/task/design/ function	with cruise control or Distronic	GF30.30-P-3100F
	Variable cruise control switch, location/task/ design/function	with cruise control or Distronic except	GF30.30-P-3101A
	Electronic accelerator/cruise control/idle speed control actuator location/task/design/function		GF30.22-P-4010F
	Throttle valve actuator, location/task/design/ function	Engine 111 EVO	GF30.22-P-4101GS
	Stop lamp switch, location/task/function		GF42.10-P-4000A
	Clutch pedal switch, location/task/function	with MT	GF29.10-P-2100F
	Variable speed limiter, function	Additional cruise control function except	GF30.30-P-3001A
	ETC control unit, location/task	Transmits information about the selector lever position P/N and the driving mode selected via CAN. Transmission 722.6	GF27.19-P-4012G
