Overlap Regulating Valve, Location/Task/Function

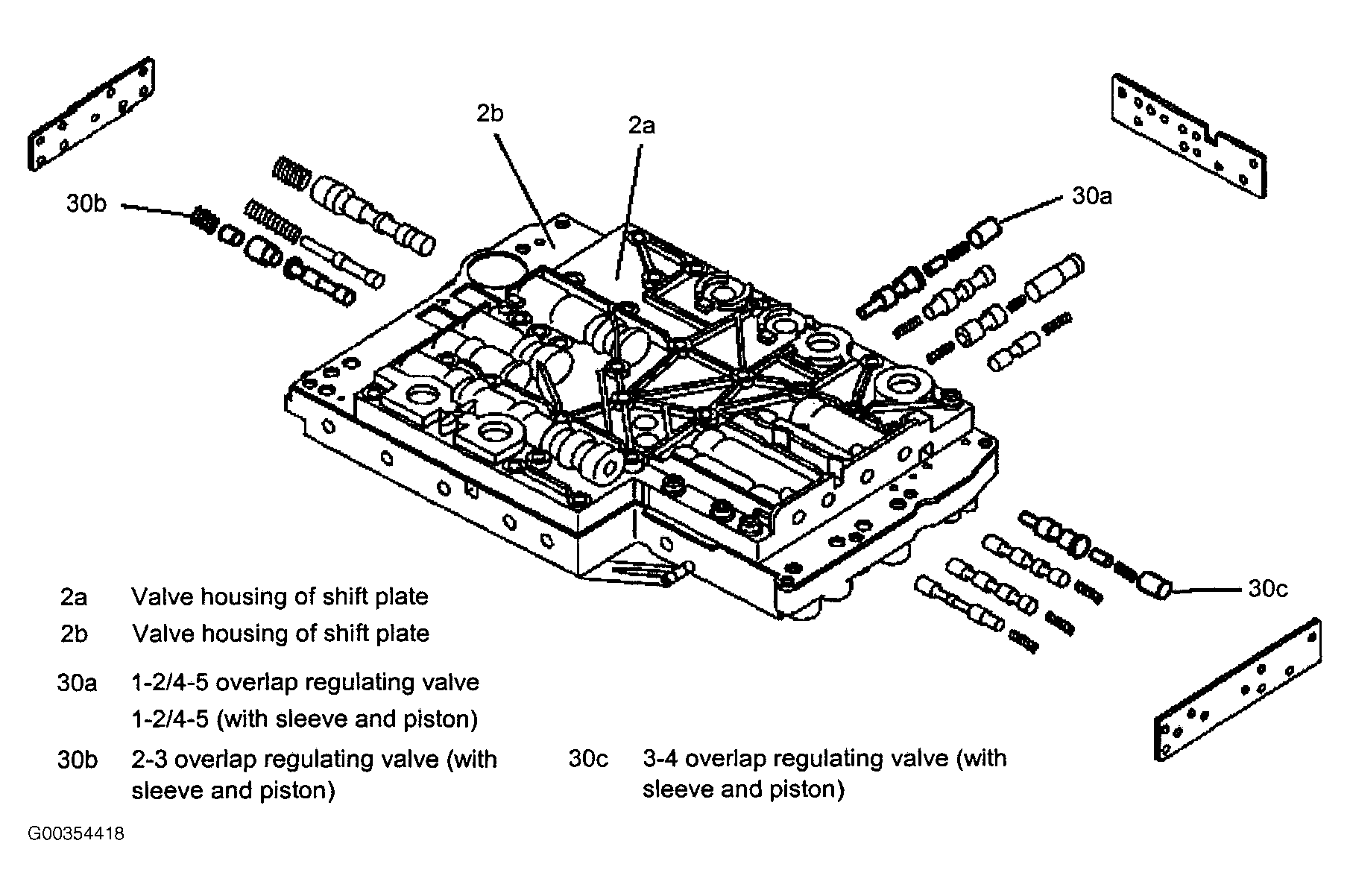

Fig 1: Overlap Regulating Valve, Location/Task/Function

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

1. Overlap Regulating Valve, Location

   Each shift group is assigned one overlap regulating valve. The 1-2/4-5 overlap regulating valve (30a) is installed in the valve housing of the shift plate (2b), the 2-3 overlap regulating valve (30b) and 4-5 (30c) are installed in the valve housing of the shift plate (2a). See Fig 1.
2. Overlap Regulating Valve, Location

   The overlap regulating valve regulates the pressure reduction during a shift phase.
3. Overlap Regulating Valve, Function

   See OVERLAP REGULATING VALVE, FUNCTION .
