Electronic Selector Lever Module Control Module, Design

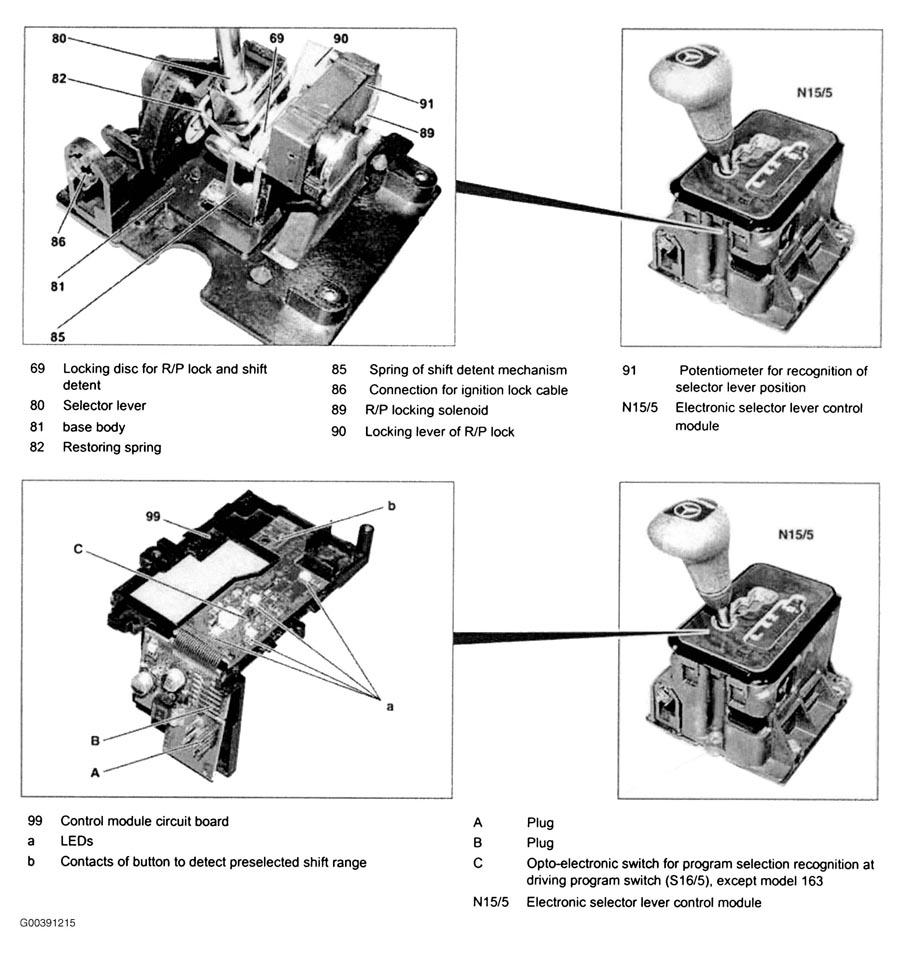

Fig 1: Electronic Selector Lever Module Control Module, Design

G00391215

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
