Electronic Control Module, Location/Task/Design/Function: Notes

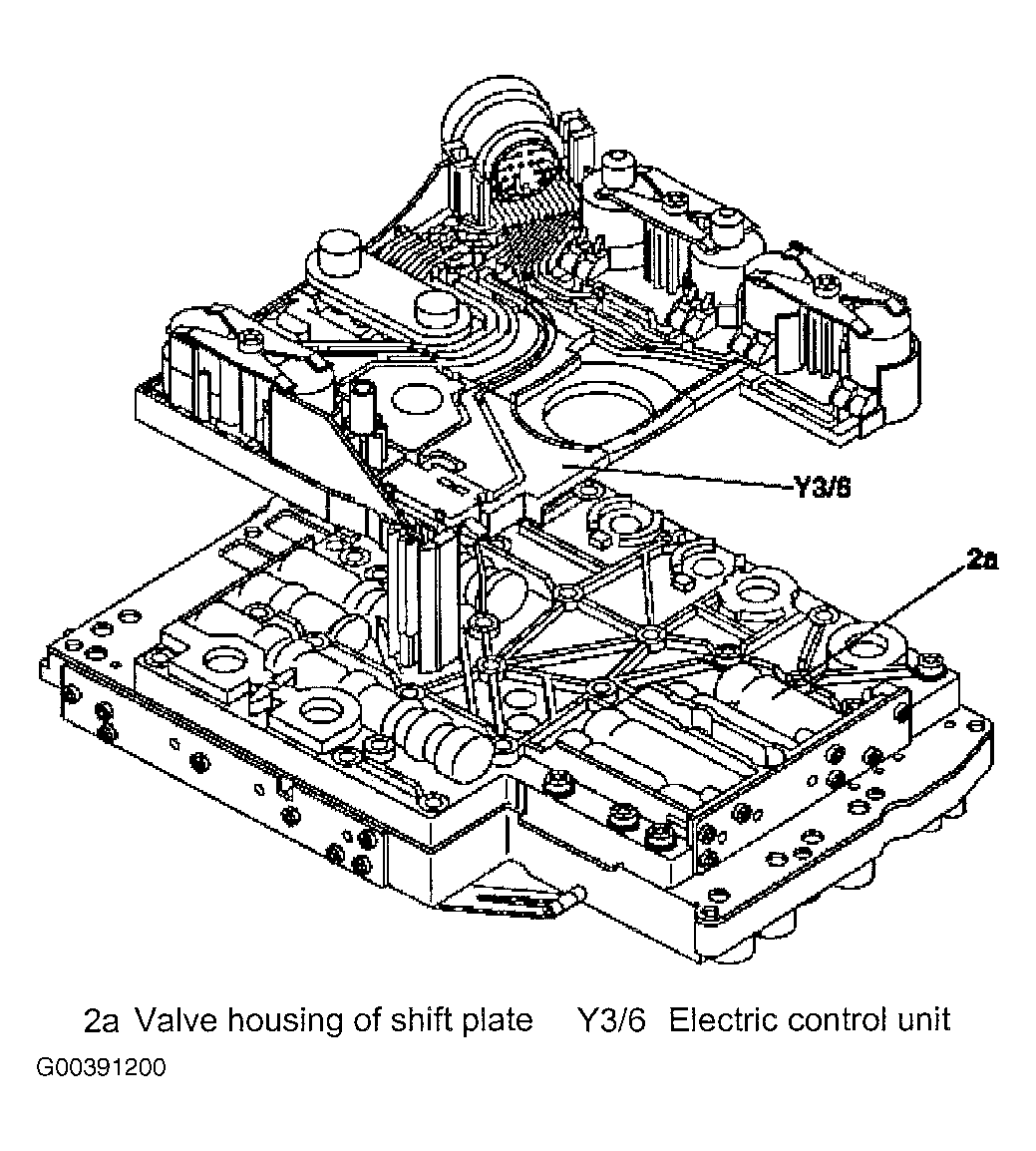

Fig 1: Electronic Control Module, Location/Task/Design/Function

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

1. Electronic Control Module, Location

   Bolted onto the valve housing of shift plate (2a). See Fig 1.
2. Electronic Control Module, Task

   To receive various input signals and to convert the control module information into hydraulic functions.
3. Electronic Control Module, Design

   See ELECTRONIC CONTROL MODULE, DESIGN .
4. Electronic Control Module, Function

   See ELECTRONIC CONTROL MODULE, FUNCTION .
