Shift From 1 To 2, Function: Notes

Fig 1: Shift From 1 To 2, Function (1st Gear Engaged)
G00354364Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

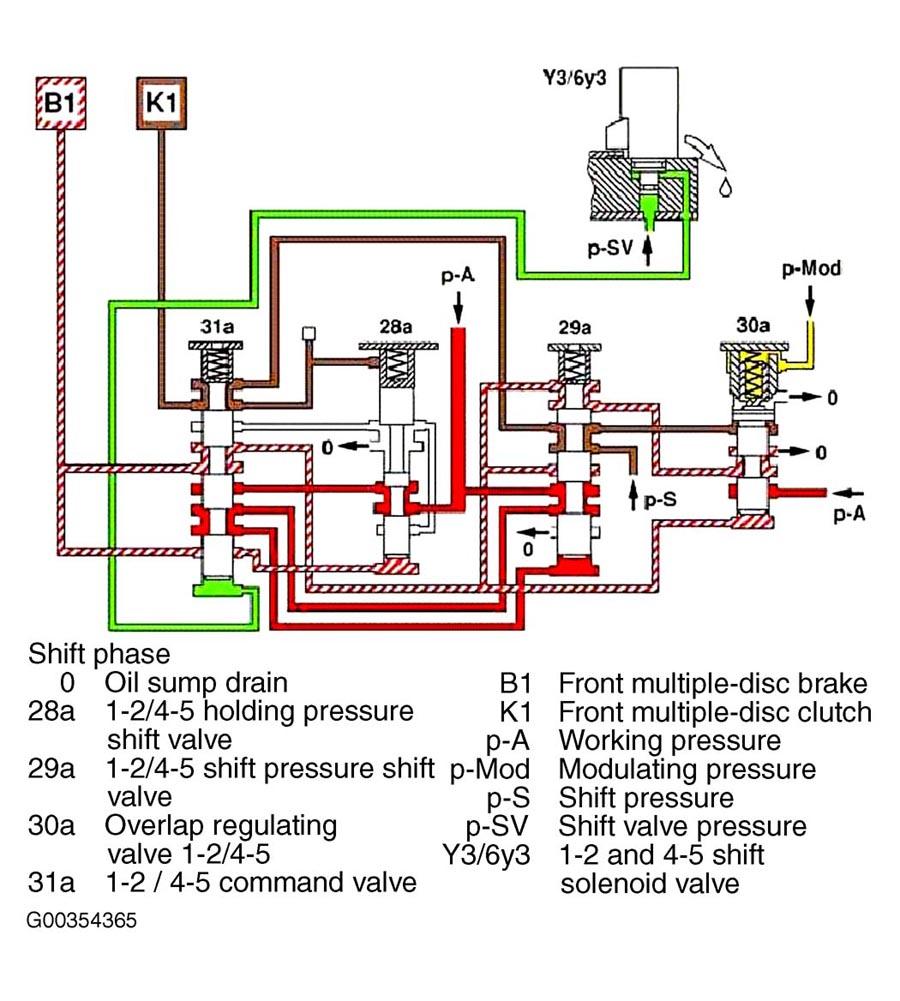

Fig 2: Shift From 1 To 2, Function (Shift Phase)
G00354365Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

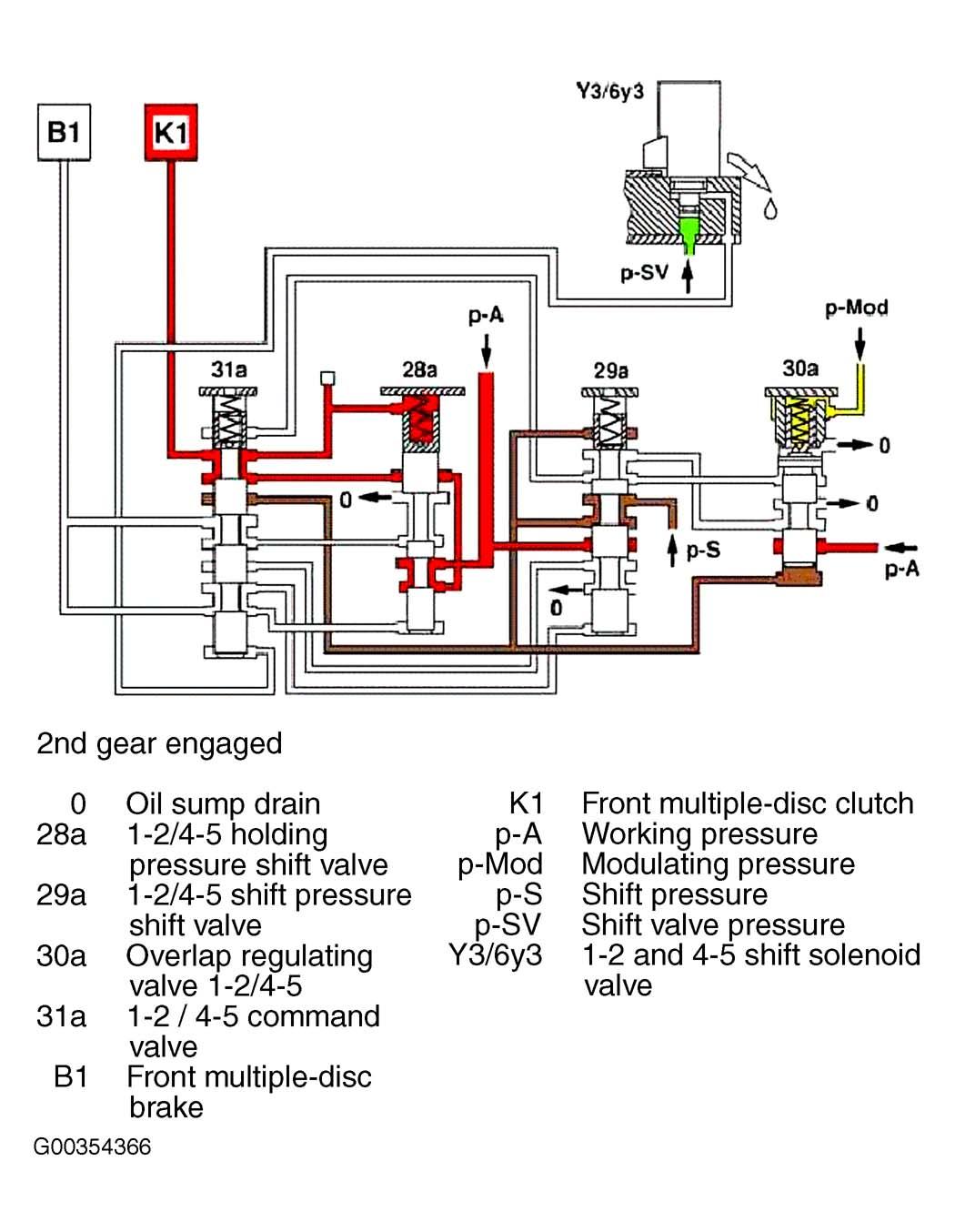

Fig 3: Shift From 1 To 2, Function (Second Gear Engaged)
G00354366Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
