Fuel Injection System Test (Steps 32.0-33.1)

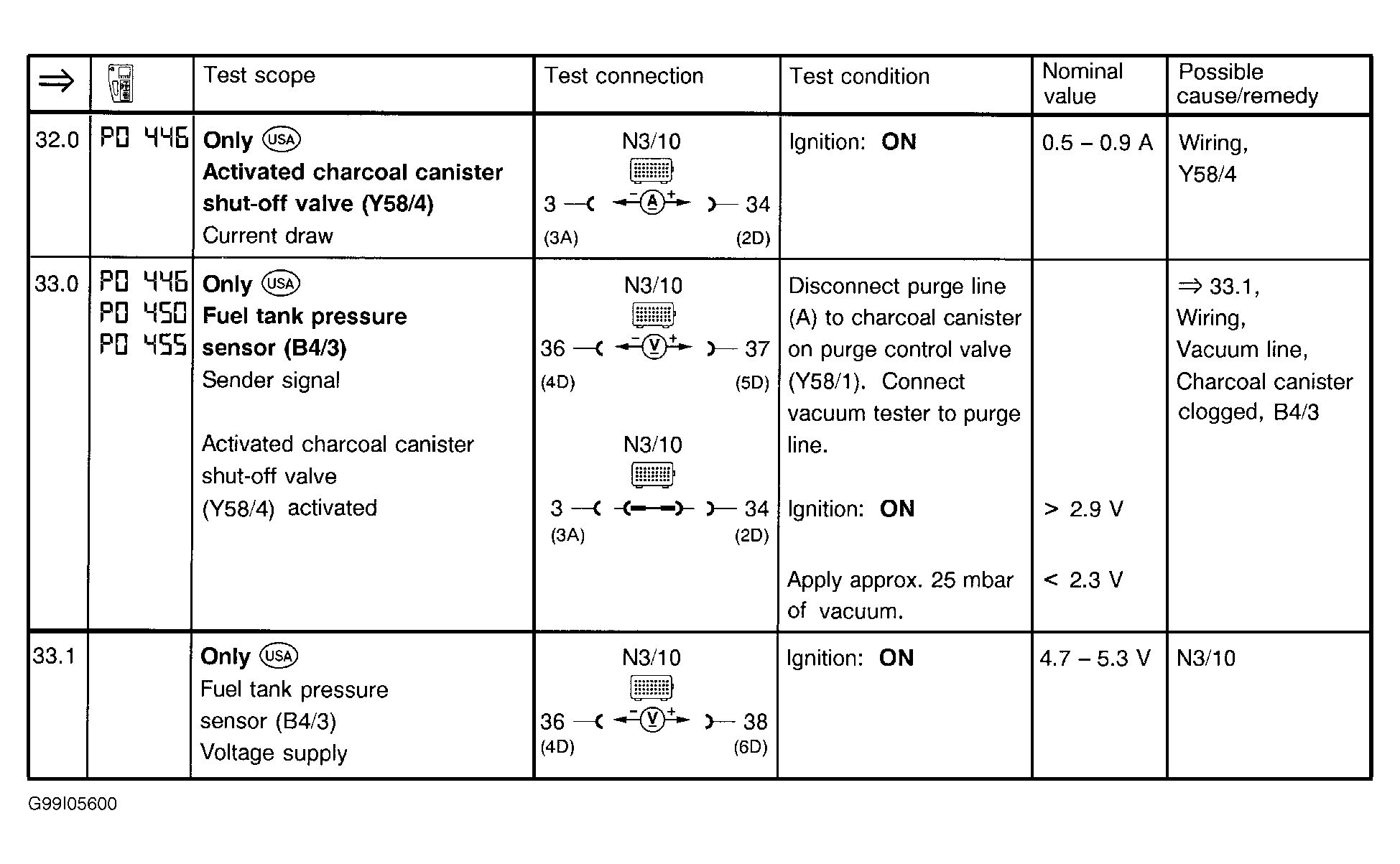

Fig 1: Fuel Injection System Test (Steps 32.0-33.1)

G99I05600

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
