Fuel Injection System Test (Steps 1.0 & 1.1)

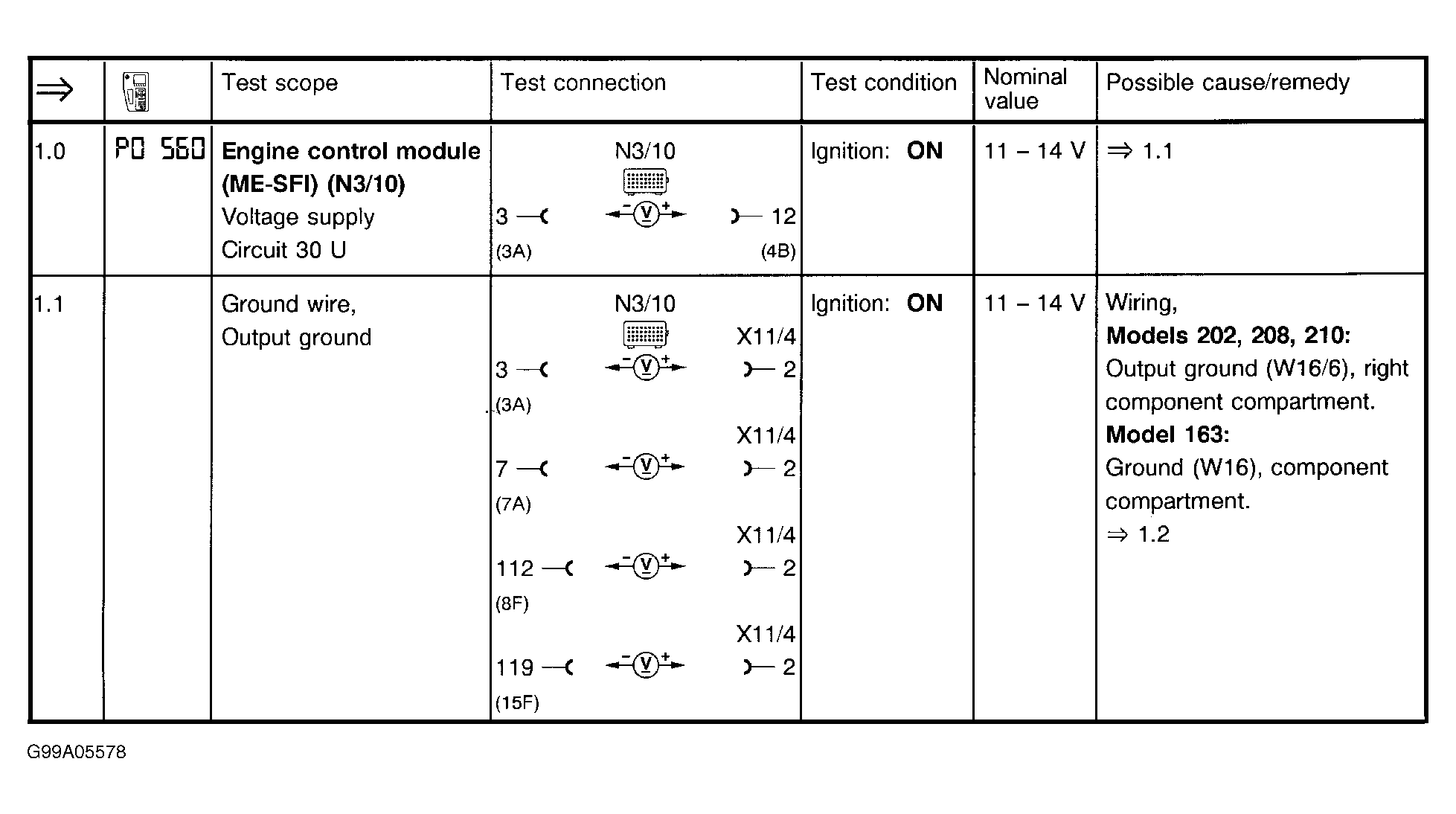

Fig 1: Fuel Injection System Test (Steps 1.0 & 1.1)

G99A05578

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
