Complete interlinkage, location of components - GF00.19-P-0001-01A

Model 202 as of 1.6.97, 208, 210.081, 210.281, 210 (except 210.081, 210.281) as of 1.3.97

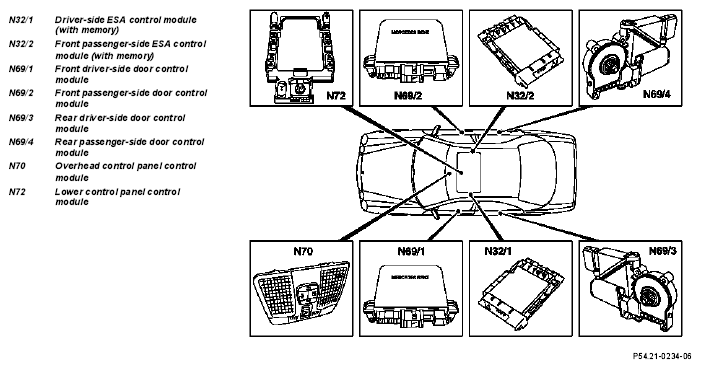

Figure 1

Fig 1: Identifying Interlinkage Components Location (1 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

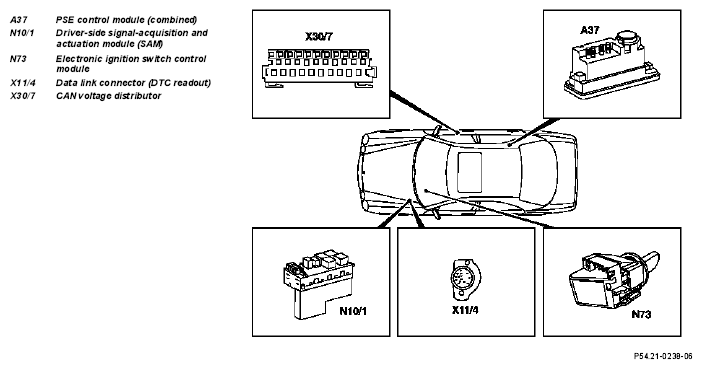

Figure 2

Fig 2: Identifying Interlinkage Components Location (2 Of 2)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

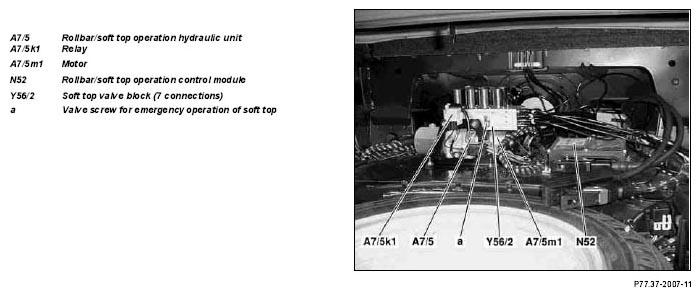

Figure 3 Location of rollbar/soft top operation control module (N52), only model 208.4 (convertible)

Fig 3: Identifying Rollbar/Soft Top Operation Control Module (N52)

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
