Power Steering Gear: Overhaul

NOTE: Use illustration for exploded view of power steering pump. See Fig 1 or Fig 2 .

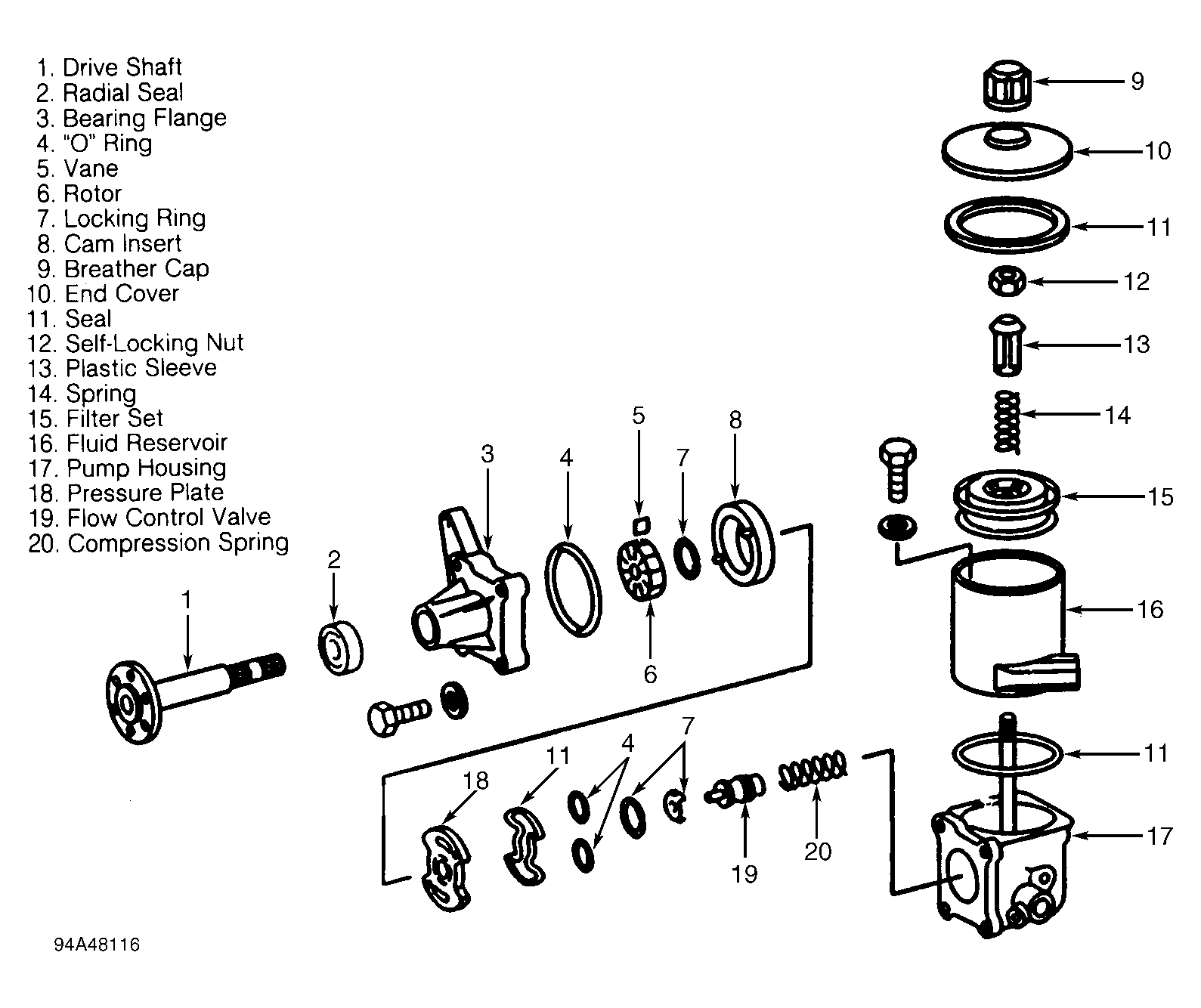

Fig 1: Exploded View Of Standard Power Steering Pump

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.

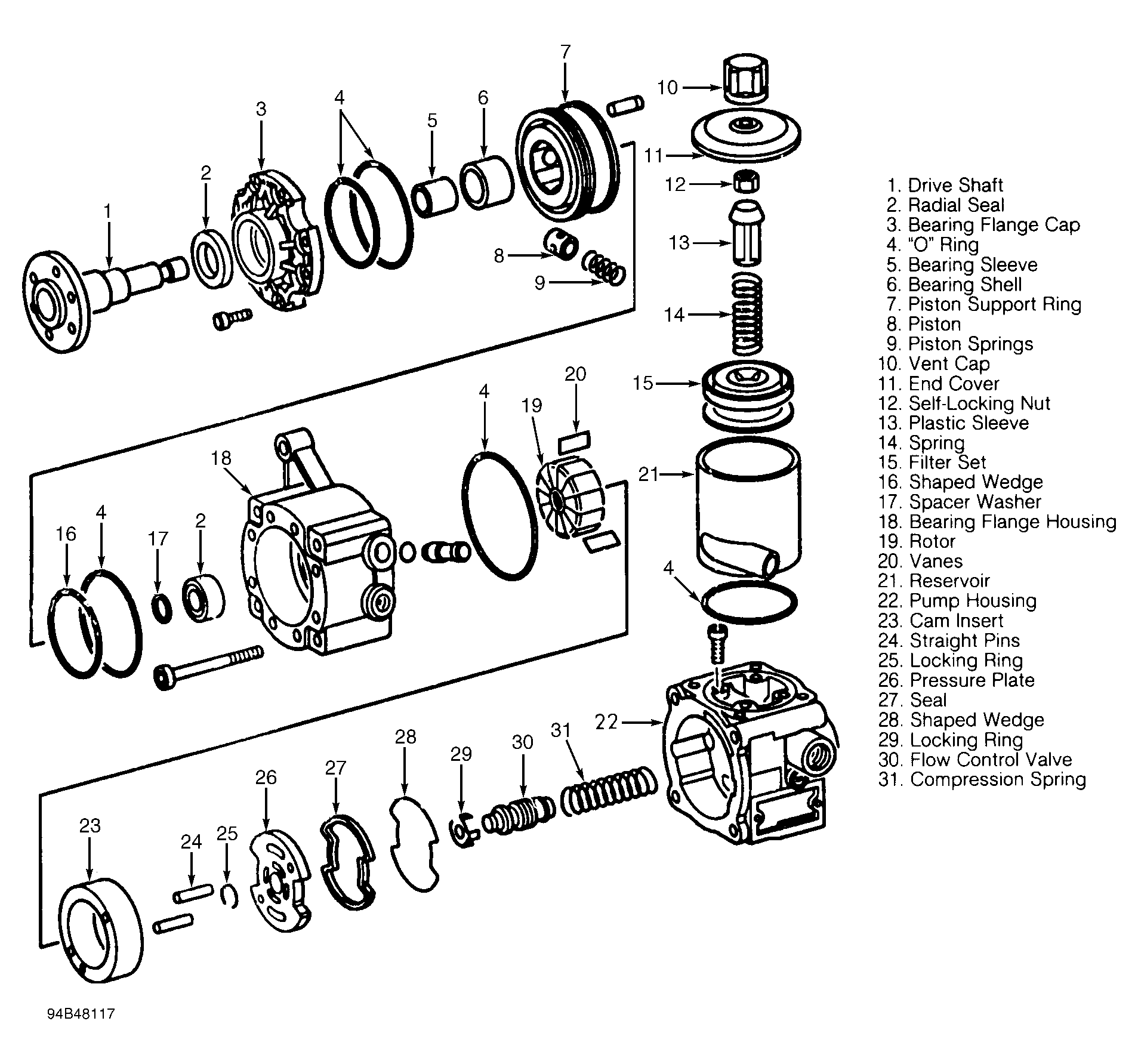

Fig 2: Exploded View Of Tandem Power Steering Pump

Courtesy of MERCEDES-BENZ OF NORTH AMERICA.
