Removing and installing starter - AR15.30-P-7100EC

ENGINE 119.960 in MODEL 129.066

ENGINE 119.972 /982 in MODEL 129.067

ENGINE 120.981 /983 in MODEL 129.076

Shown on engine 119

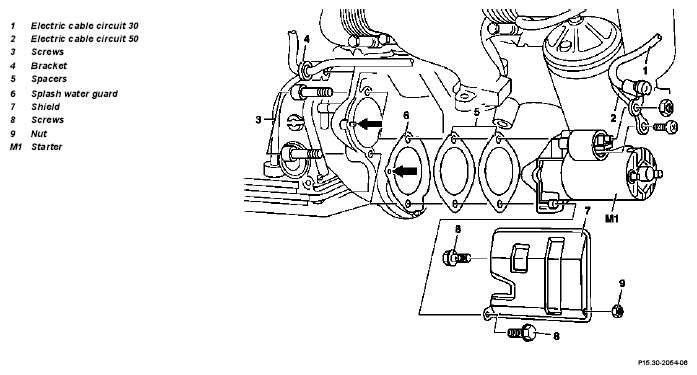

Fig 1: Identifying Starter Remove/Install Components - Shown On Engine 119
G04678756
MODIFICATION NOTES

6.7.00 Figure modified from 16 Nm to 14 Nm Figure in BA15.30-P-1001-01A for engine 112, 113 modified *BA15.30-P-1001-01A
6.7.00 Figure modified from 10 Nm to 6 Nm Figure in BA15.30-P-1002-01A for engine 112, 113 modified *BA15.30-P-1002-01A
6.7.00 Figure modified from 58 Nm to 42 Nm Figure in BA15.30-P-1003-01A for engine 112, 113 modified *BA15.30-P-1003-01A
6.7.00 Figure modified from 42 Nm to 58 Nm Figure in BA15.30-P-1003-01A for engine 119 modified *BA15.30-P-1003-01A
REMOVINGINSTALLING Removing, installing
DANGER Risk of explosion  from explosive gas. Risk of poisoning and caustic burns  from swallowing battery electrolyte. Risk of injury  from caustic burns to eyes and skin from battery electrolyte or from handling damaged lead acid batteries. No fire, sparks, naked flames or smoking. Wear acid-resistant gloves, clothing and glasses. Pour battery electrolyte only into suitable and appropriately marked containers. AS54.10-Z-0001-01A
1 Disconnect ground cable of battery NOTES Insulate cable lug of ground cable to provide protection from unintentional contact between disconnected ground cable and ground point W10 AR54.10-P-0003A
NOTES Notes on battery All models AH54.10-P-0001-01A
2 Turn steering to full left lock Engine 120
3 Remove bottom engine compartment panel   AR61.20-P-1105AB
4 Take off shield of right pitman arm
5 Detach stiffener strut at front right
6.1 Unscrew bolts (8) and nut (9) and take out shield (7) Engine 119
6.2 Remove shield at starter Engine 120
7 Remove bracket (4) Engine 119
8 Disconnect electric cables (1/2) TORQUE SPECIFICATION *BA15.30-P-1001-01A
TORQUE SPECIFICATION *BA15.30-P-1002-01A
9 Unscrew screws (3) TORQUE SPECIFICATION
IMPORTANTInstallation  : Connect ground lead.
*BA15.30-P-1003-01A
10 Take starter (M1) down and out IMPORTANTInstallation: On engine 119, ensure splash water guard (6) is correctly positioned (arrows) and spacer(s) (5) are correctly installed in the correct quantity  .
11 Install in the reverse order
12 Carry out operational check
13 Render electrical system operational IMPORTANT Perform basic programming AR00.19-P-0200A
TORQUE SPECIFICATION STARTER

Number Designation Engine 103, 104, 111, 120 Engine 119
BA15.30-P-1001-01A Nut of connection circuit 30 Nm 14 14
BA15.30-P-1002-01A Nut of connection of circuit 50 Nm 6 6
BA15.30-P-1003-01A Bolt of starter to crankcase Nm 42 58
