Electric seat adjustment without memory, function - GF91.29-P-0003GH
MODEL 163

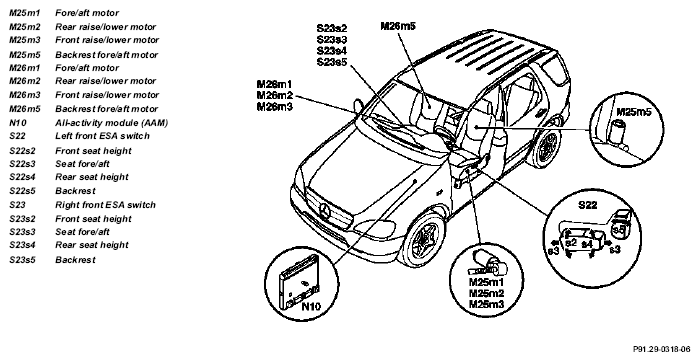

Location of components
Function prerequisites
- Switch-on conditions for convenience control fulfilled
- Voltage not too low or too high
Function
The electric seat adjustment for the front seats is accomplished using motor groups located below the seat in question. These motors are controlled by the left front ESA switch (S22) and right front ESA switch (S23) .
The front seats can be adjusted as follows:
- Front height
- Fore/aft
- Rear height
- Backrest
| Adjusting seats, function | GF91.29-P-2005GH | ||
| Front seat adjustment switch cluster, location/ purpose/design/function | GF91.29-P-2100GH | ||
| Front seat adjustment motor group | GF91.29-P-2103GH | ||
| Convenience control | GF72.29-P-2002GH | ||
| Convenience control, function | as of 12.99 | GF91.29-P-2013GK | |
| All-activity module (N10) | up to 11.99 | GF54.21-P-4100GH | |
| as of 12.99 | GF54.21-P-4100GK | ||
| Front seat adjustment motor group, location/ function | GF91.29-P-2103GH |
